5 micron spun polypropylene pp water filter cartridge 40inch

5 micron spun polypropylene pp water filter cartridge 40inch

5 micron spun polypropylene pp water filter cartridge 40inch
5 micron spun polypropylene pp water filter cartridge 40inch5 micron spun polypropylene pp water filter cartridge 40inch5 micron spun polypropylene pp water filter cartridge 40inch5 micron spun polypropylene pp water filter cartridge 40inch5 micron spun polypropylene pp water filter cartridge 40inch
CategoriesPP melt blown filter
AlbumView larger image
BrandKTMT
Material:Polypropylene
OD:2.5”
ID:1.1”
Micron Rate:1,5,10,25,50,75,100,150,200Micron
Length:40”
Operating Temp.4-52℃
Max. Operating Pressure60psi
Filtration Life3-6months
End CapsPolypropylene
O-Rings/GasketsBuna, EPDM, Silicone, Viton®, Polyfoam
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information
5 micron spun polypropylene pp water filter cartridge 40inch


Introduction:


5 Micron PP Polypropylene pp water filter cartridge, it is suitable for most applications including whole house, tank and dam systems.


Dimensions: 10" x 2.5", 20" x 2.5" 30" x 2.5", 40" x 2.5"



Includes: 1 x 5 micron PP Sediment Water Filter Cartridge, will suit all 10" x 2.5" Transparent, White Filter Housings.

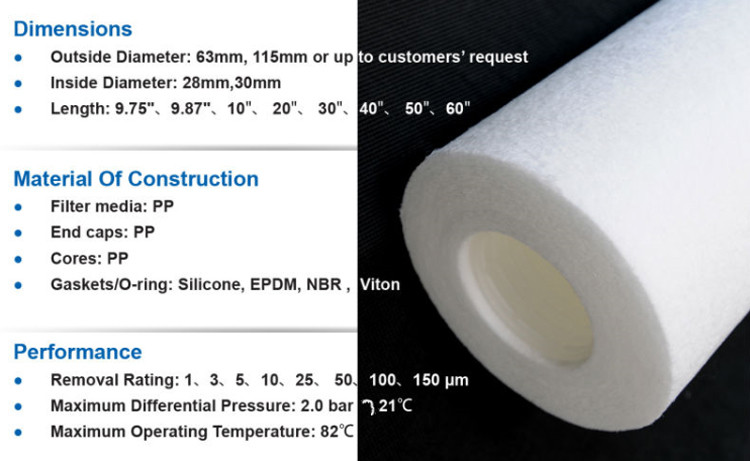

Specification:


Filter medium:

Polypropylene

Relative filtration pore size:

1, 3, 5, 10, 20, 25, 30, 50, 75, 100 µm

Length

10", 20",30”, 40”

Outer diameter

2.5inch

Inner diameter

28 ~ 30 mm

Interface

Flat, insert, screwed

End caps

Polypropylene

Max. operating temperature

140°F (60°C)

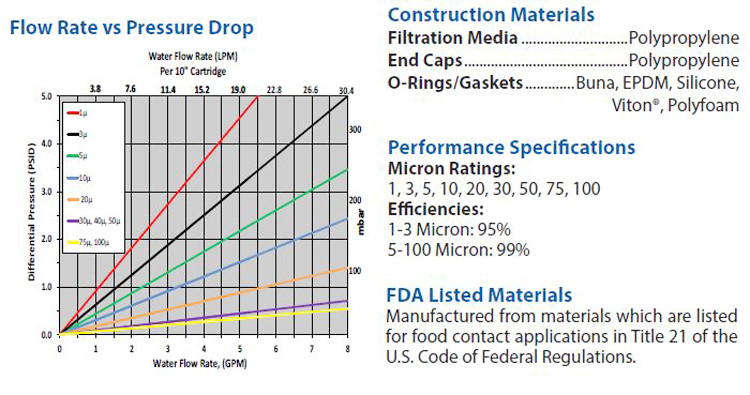

Efficiencies

80%

Change Out Differential Pressure

20 PSID

Others

special requirement of diameter and end caps can be customized

Feature:


l  Unique & proprietary process delivers superior efficiency, life and economy

l  Excellent compatibility with a wide range of chemicals

l  Graded density pore structure enhances dirt holding capacity

l  Easy cartridge incineration and disposal

l  All polypropylene construction



Packing and Shipping:

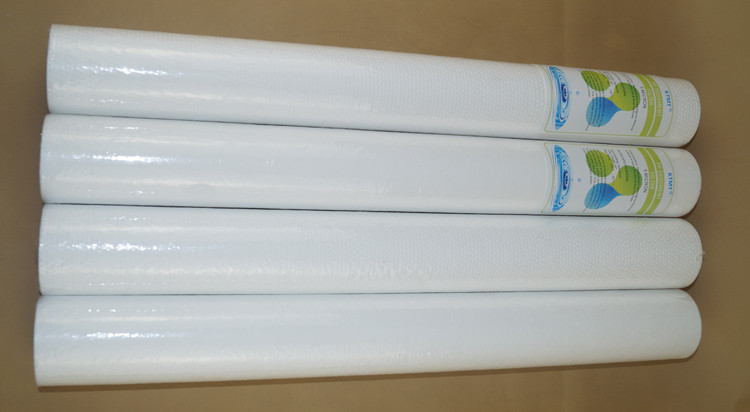

Packing: wrapped with plastic film, and packed in carton, pallets, or pack as customer’s requirement.

Shipping: Usually can deliver the goods 10-15 days after receipt if the payment, and also according to the order quantity. We can accept shipping by sea, by air, and can also ship according to customer’s request.

Application:


1.Prefiltration for water purification

2.Coarse filtration for all kinds of beverage and wine

3.Prefiltration for microelectronic and medicine industries

4.Cleaning for sewage processing
