20" customized melt blown pp filter cartridge

20" customized melt blown pp filter cartridge

CategoriesPP melt blown filter
AlbumView larger image
Filter medium:polypropylene
Relative filtration pore size:1,3,5,10,20,30,50,75,100 µm
Outer diameter:2.5inch
Inner diameter:28mm or 30mm
End caps:Polypropylene
Interface:Flat, insert, screwed
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information

20"customized melt blown pp filter cartridge

Product Description:

Melt Blown Filter Cartridge is fusing and intertwined of polypropylene resin without any chemical glues. The cartridges are glued at random to form 3D micro pore which will make the cartridge 3 layers with fine fibers in surface and coarse fibers and deep filtration. As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.



Filter medium:

PP melt blown

Relative filtration pore size:

1,3,5,10,20,30,50,75,100 µm


10", 20", 30", 40",50’’

Outer diameter

60 ~ 85 mm

Inner diameter

28 ~ 30 mm

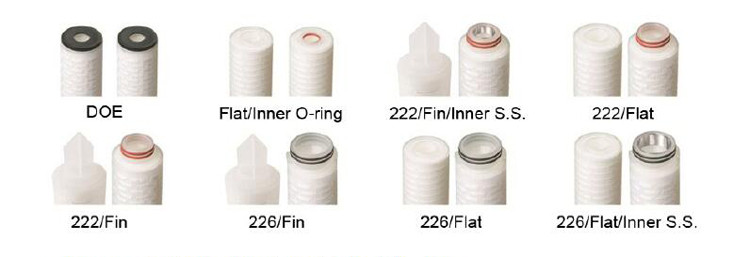

Flat, insert, screwed

End caps


Effective filtration area

≥0.045 m2/10"

Max. operating temperature

60°C,0.2 MPa

Max. positive pressure

0.2 MPa(25°C)

Max. back pressure

0.1 MPa(25°C)


special requirement of diameter and end caps can be customized


1. Wide chemical compatibility

2. Small resistance, large flow rate

3. Corrosion resistance, good pressure resistance
4. All kinds of adaptors are available
5. It has higher contaminant holding capacity and long service life.



Pre-filtration or RO system, solvent, chemical industry, oil industry, electronic and power industries, plating, food and beverage, wines, drinking water treatment.

Packing and Shipping:

Packing: wrapped with plastic film, and packed in carton, pallets, or pack as customer’s requirement.

Shipping: Usually can deliver the goods 10-15 days after receipt if the payment, and also according to the order quantity. We can accept shipping by sea, by air, and can also ship according to customer’s request.
