PP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtration

PP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtration

PP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtration
PP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtrationPP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtrationPP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtrationPP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtrationPP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtration
CategoriesString Wound Filter Cartridge
AlbumView larger image
BrandKTMT
Filter MediaPP, Bleached Cotton
Micron Rating5 μm
CorePolypropylene, SUS304, SUS316
Inside Diameter1.1inch
Outside Diameter2.5inch
Length30inch, 40inch
Gasket/O-ringSilicone, EPDM, Viton, Teflon encapsulated Viton
End CapFlat ,222 O-Ring,226 O-Ring, Fin
FOB portTianjin
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOC
Update Time2019-07-18
Detail Information

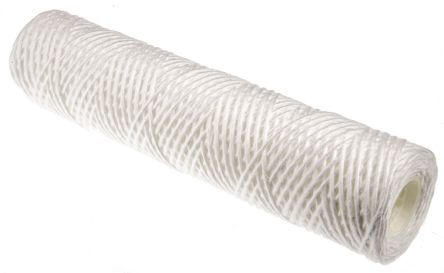

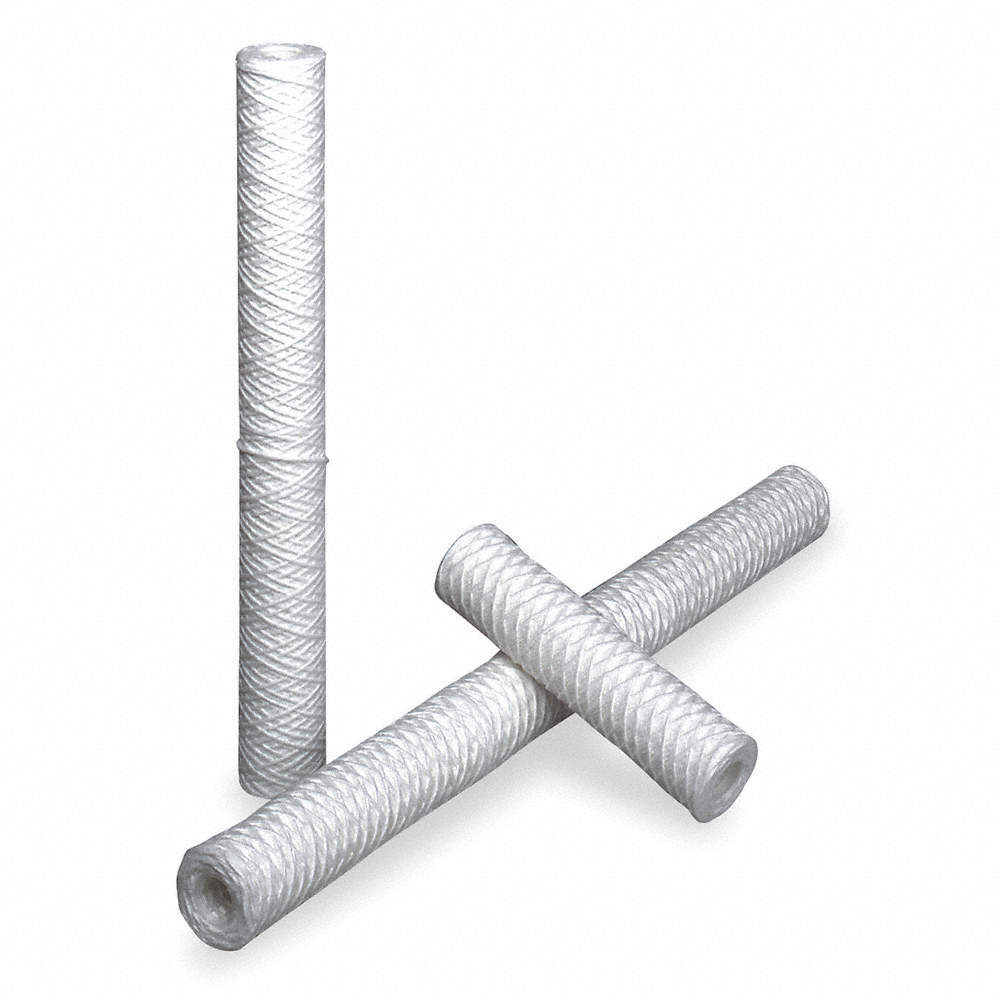

PP Yarn Water Filter Cartridge for RO System and DI Water Pre-filtration

Description:



KTMT string wound filter cartridges are manufactured by honeycomb construction, inner layers are tight while outer layers are loose, we use computer modeling process which optimizes the filter cartridges geometrically and maximizes the use of cartridge surface area by the diamond-shaped depth filtration cones. The density design provide high flow rate, low pressure drop and impoved dirt holding capacity. Filter materials are PP, Bleached cotton and Glass Fiber etc.


 Feature:



1.    Good resistance to acid, alkali corrosion.

2.    Large surface area enhancing liquid filtering effect.

3.    Flexible design and kinds of material

4.    Wide application and excellent chemical compatibility for different applications.

5.    Honeycomb construction offer high dirt holding capacity, long service life and high flow rate.



Specification:



Filter Media

PP, Bleached Cotton, Glass Fiber

Micron Rating

1, 5, 10, 20, 30, 50, 75, 100 μm

Core

Polypropylene, SUS304, SUS316

Inside Diameter

1.1"( 28mm),1.2"(30mm)

Outside Diameter

2.36"(60mm),2.4"(61mm), 2.5"(63mm), 2.55"(65mm)

Length

5",9.75"9.8",10",20",30",40",50"

Gasket/O-ring

Silicone, EPDM, Viton, Teflon encapsulated Viton

End Cap

Flat ,222 O-Ring,226 O-Ring, Fin

Operating date:



Different Material

PP

Bleached Cotton

Glass Fiber

Maximum Operating Temperature

60(140)

150(300)

400(750)



Maximum Differential Pressure

2.7 bar at 27 (50 psi at 80)

1.4 bar at 60 (20 psi at 140)

0.7 bar at 82 (10 psi at 180)

Recommended Change Out Differential

Pressure

1 bar (14psi)



KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology



Application:


--Pre-filtration of drinking water, potable water or table-water.

--Filtration of industry water.

--Pre-filtration of RO, Pre-treatment of sea water desalination

-- Condensate water filtration in power generation

--Solvents filtration in BioPharm market

--Paints and coatings, Petrochemical, Refineries

-- Pre-filtration of ultrapure water.
