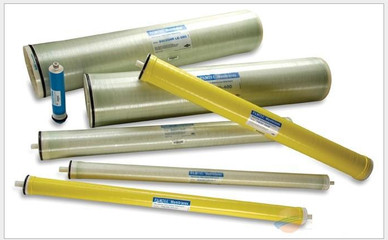

BW30 4040 industry RO membrane for Oil industry water treatment

BW30 4040 industry RO membrane for Oil industry water treatment

BW30 4040 industry RO membrane for Oil industry water treatment
BW30 4040 industry RO membrane for Oil industry water treatmentBW30 4040 industry RO membrane for Oil industry water treatmentBW30 4040 industry RO membrane for Oil industry water treatment
CategoriesIndustrial Reverse Osmosis Membrane
AlbumView larger image
BrandKTMT
Nominal Active Surface Area ft2 (m2)78 (7.2)
Permeate Flow Rate gpd (m3/d)2,400 (9.1)
Stabilized Salt Rejection (%)99.5
NaCl2000 ppm
Temperature:77°F (25°C)
pH range1-13
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information
BW30 4040 industry RO membrane for Oil industry water treatment

Brief Introduction



DOW FILMTEC™ brackish water reverse osmosis membrane elements offer consistent, exceptional system performance in light industrial applications.

·         DOW FILMTEC BW30-4040 is an industry standard for reliable operation and production of high quality water.

·         Features the thickest feed spacer (34 mil) available in the industry today to lessen the impact of fouling.

·         May be cleaned over a wide pH range (pH 1-13) for the most effective cleaning.

Elements with a hard shell exterior are recommended for systems with multiple-element housings containing three or more membranes, as they are designed to withstand higher pressure drops.





         Specifications



Nominal Active Surface Area
ft2 (m2)

Permeate Flow Rate
gpd (m3/d)

Stabilized Salt Rejection
(%)

78 (7.2)

2,400 (9.1)

99.5



1.    Permeate flow rate and salt rejection based on the following test conditions: 2000 ppm NaCl, 225 psig (15.5 bar), 77°F (25°C), and 15% recovery.

2.    Permeate flow rates for individual elements may vary +/-20%.

3.    For the purpose of improvement, specifications may be updated periodically.



     Being suitable for the desalting treatment of those water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water, etc., ULP series membrane elements are mainly applicable to numerous applications of various scales, such as pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production, etc.

BW-4040 Series:


BW-4040 Reverse Osmosis Membrane 4040,Industrial Membrane Filtration,Industrial RO Water Purifier

(Suit for :Industial Factoy,Water Supply plant,Waste water treatment plant,Food or Drinking  plant,ect , ask high water Permeate flow project).



BW series is mainly applicable to brackish water desalination, and enjoys the characteristics of low-pressure operation, high permeate flow and excellent desalination property. Furthermore, with the excellent property of eliminating the soluble salts, TOC and SiO2, it is especially suitable for the preparation of high-purity water in electronic and electricity industries.



Specifications:


RO Membrane Element
1-Membrane sheet's technology import from USA

2-Membrane sheet and element are produce at our factory with reliable quality  .
3-reasonable price
4-flexible service

Dow Filmtec Industrial Reverse Osmosis Membrane Series:

Model

Effect Membrane Area ft2(m2)

Test Pressure(bar)

Water Yield GPD(m3/d)

Salt Rejection (%)

BW30-400

400 (37)

225 (15.5)

10500 (40)

99.5

BW30-365

365 (34)

225 (15.5)

9500 (36)

99.5

BW30-400 IG

400 (37)

225 (15.5)

10500 (40)

99.5

BW30-365 IG

365 (34)

225 (15.5)

9500 (36)

99.5

BW30FR-400

400 (37)

225 (15.5)

10500 (40)

99.5

BW30FR-365

365 (34)

225 (15.5)

9500 (36)

99.5

BW30-400/34i

400 (37)

225 (15.5)

10500 (40)

99.5

BW30HR-440i

440 (41)

225 (15.5)

11500 (43)

99.5

BW30-440i

440 (41)

225 (15.5)

11500 (43)

99.5

LE-400

400 (37)

150 (10.3)

11500 (44)

99.3

LE-440i

440 (41)

150 (10.3)

12650 (48)

99.3

XLE-440

440 (41)

125 (8.5)

14500 (55)

99.0

BW30-4040

82 (7.6)

225 (15.5)

2400 (9.0)

99.5

LCLE-4040

78 (7.2)

145 (10.0)

3000 (11.4)

99.3

XLE-4040

82 (7.6)

100 (6.9)

2600 (9.8)

99.0

TW30-1812-50

----

50 (3.4)

50

98.0

TW30-1812-75

----

50 (3.4)

75

98.0

TW30-1812-100

----

50 (3.4)

100

90.0
