Hydranautics Industrial RO membrane for Water Filter Parts

Hydranautics Industrial RO membrane for Water Filter Parts

Hydranautics Industrial RO membrane for Water Filter Parts
Hydranautics Industrial RO membrane for Water Filter PartsHydranautics Industrial RO membrane for Water Filter PartsHydranautics Industrial RO membrane for Water Filter PartsHydranautics Industrial RO membrane for Water Filter Parts
CategoriesIndustrial Reverse Osmosis Membrane
AlbumView larger image
BrandKTMT
Configuration:Spiral Wound
Salt Rejection:99.8 % (99.6 % minimum)
Membrane Polymer:Composite Polyamide
Maximum Chlorine Concentration:< 0.1 PPM
Maximum Operating Temperature:113 °F (45 °C)
pH Range, Continuous (Cleaning):2-11 (1-13)*
Maximum Feedwater Turbidity:1.0 NTU
Maximum Feedwater SDI (15 mins):5.0
Permeate Flow for any Element:5:1
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information
Hydranautics Industrial RO membrane for Water Filter Parts

Introduction:

Reverse osmosis is a process that removes particles having with a molecular weight cutoff of 100 to 200. This process is perfect for removing substances such as: metal ions, acids, sugars, dyes, natural resins and ions. Hy dranautics' RO Membrane offers various degrees of flux and rejection characteritics, specifically suited to treat multiple and diverse water treatment applications.

Application Data:

Maximum Applied Pressure: 1000 psig (6.9 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2.0 - 11.0 (1-13)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 250 GPM (56 m3/h)

Minimum Ratio of Concentrate to

Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi

* The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane.

Other Models also can be supplied.

Model

Effect membrane area ft2(m2)

Test Pressure (bar)

Water Yield GPD(m3/d)

Recovery Rate (%)

PROC10

400 (37.2)

225 (15.5)

10500 (39.7)

99.75

PROC20

400 (37.2)

150 (10.5)

10500 (39.7)

99.5

CPA2-4040

85 (7.9)

225 (15.5)

2250 (8.5)

99.5

CPA3-LD

400 (37.2)

225 (15.5)

11000 (41.6)

99.7

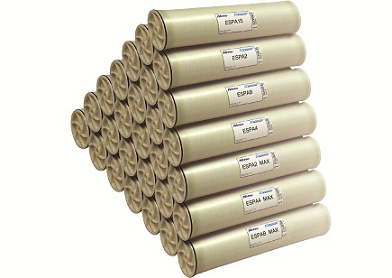

ESPA1-4040

85 (7.9)

150 (10.5)

2600 (9.8)

99.3

ESPA2-4040

85 (7.9)

150 (10.5)

1900 (7.2)

99.6

ESPA4-4040

85 (7.9)

100 (7.0)

2500 (9.5)

99.2

ESPA1-7

400 (37.2)

150 (10.5)

12000 (45.4)

99.3

ESPA2-7

400 (37.2)

150 (10.5)

9000 (34.1)

99.6

ESPA4-7

400 (37.2)

100 (7.0)

12000 (45.4)

99.2

LFC1-4040

85 (7.9)

225 (15.5)

2300 (8.7)

99.4

LFC3-LD

400 (37.2)

225 (15.5)

11000 (41.6)

99.7

SWC5-4040

85 (7.9)

800 (55.2)

1900 (7.2)

99.7

SWC5

400 (37.2)

800 (55.2)

9000 (34.1)

99.8

YQS-4040

77 (7.2)

150 (10.5)

3000 (11.4)

99.0

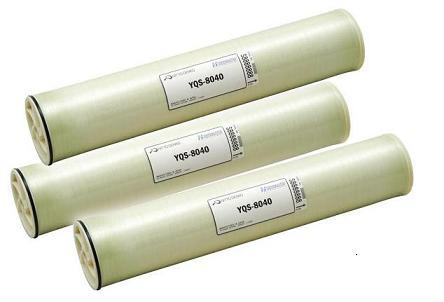

YQS-8040

365 (33.9)

225 (15.5)

9500 (36.0)

99.5
