Stainless steel Johnson industrial screen/OEM Screens

Stainless steel Johnson industrial screen/OEM Screens

Stainless steel Johnson industrial screen/OEM Screens
Stainless steel Johnson industrial screen/OEM ScreensStainless steel Johnson industrial screen/OEM ScreensStainless steel Johnson industrial screen/OEM Screens
CategoriesStainless steel filtration
AlbumView larger image
BrandKTMT
Materialsus304/316/316L
Filter Rating:>99%
Slot:0.05~6.0mm
Length:Max 6 meters.
Diameter (Inch):4'' 6'' 8'' 10''
Item:Johnson Screens
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

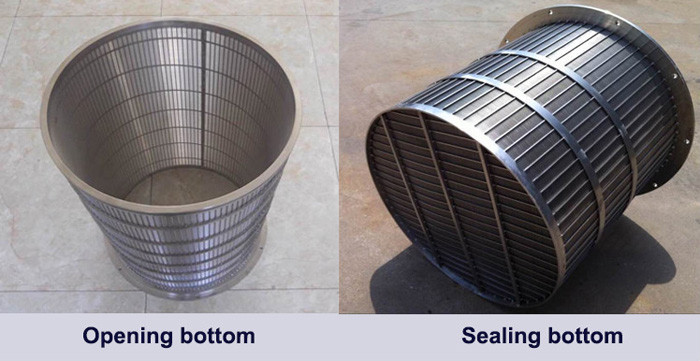

Stainless steel Johnson Industrial screen/OEM Screens

1.Material: sus304/316/316L


2.Filter Rating: >99%


3.Slot: 0.05~6.0mm


4.Filtration screen :Johnson Screens extensive manufacturing capabilities and state of the art equipment enable us to custom design and fabricate screens to exact standards and specifications. This allows us to work with each OEM to optimize the performance of the filter or strainer.

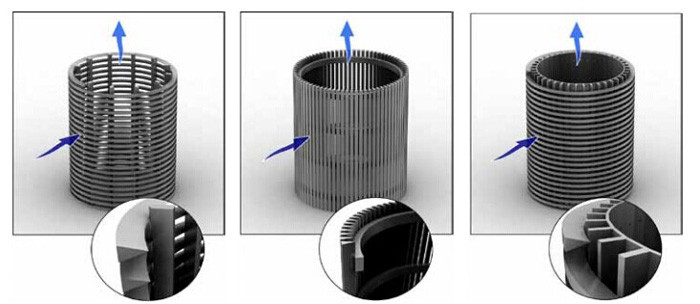

5.  Cylindrical screen for outside to inside filtration

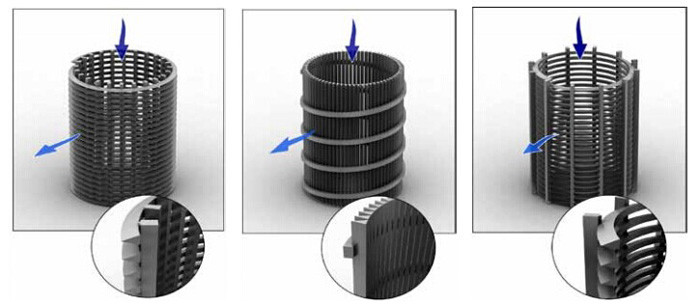

6. Cylindrical screen for  inside  to outside filtration

7. Stainless steel Johnson screen specification  table

Johnson Screen Specification

Material:

AISI304/316/316L,etc.

Wedge Wire (mm):

2.2*3.0 , 2.3*3.0 ,  2.3*3.5 ,  3.5*5.0

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Slot Size

0.10 -- 6.00mm ,also can be customized as your request.

Length

Max 6 meters.

Diameter (Inch)

4''  6''  8''  10''

Note: Other specifications can be customized according to your requirement.

8. Stainless steel Johnson screen application


·         the sea water desalination,water softening treatment,oil and chemical processing

·         alcohol and other organic solvents recycle filteration

·         filtration for chemical acid and soda liquid

·         terminal filtration for petrolic products
