Pleated SS 316/304 mesh cartridges

Pleated SS 316/304 mesh cartridges

Pleated SS 316/304 mesh cartridges
Pleated SS 316/304 mesh cartridgesPleated SS 316/304 mesh cartridgesPleated SS 316/304 mesh cartridges
CategoriesStainless steel filtration
AlbumView larger image
BrandKTMT
Material:SS 316/304
Layers:3layers or Multi-layer
Filtration:1-400micron
Length:10", 20" & 30"
Construction:Fully welded construction
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

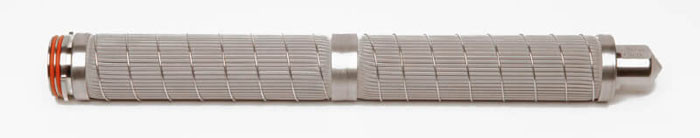

Pleated SS 316/304 mesh cartridges

Pleated SS 316/304 mesh cartridges offer the convenience of having a larger filtration area within a small enclosure since the media is pleated and enclosed within a cage of suitable diameter.



Description



These cartridges are absolutely non-particle shedding & hence prevent any product contamination. They are suited for filtration of viscous fluids at high temperatures & high pressures. All components are welded and absolutely no resins/adhesives are used in their construction. This makes them extremely sturdy as well as prevents media migration. Cleaning can be done by blow-back with compressed air, steam or by back-flushing with water or suitable solvents.



Specification:



Material:

SS 316/304

Layers

3layers or Multi-layer

Filtration:

1-400micron

Length:

10", 20" & 30"



Features:

  1. Made up of 3 layers of Mesh
  2. Enhanced filtration area because of pleated design
  3. Fully welded construction
  4. Reinforced with internal & external core
  5. Easily cleanable by reverse flushing
  6. Available in porosities ranging from 400 Micron to 1 Micron
  7. Available in 10", 20" & 30" Length

Applications

Dust Filtration, Viscous Fluids filtration, high pressure & high temperature molten monomer / polymer filtration etc.
