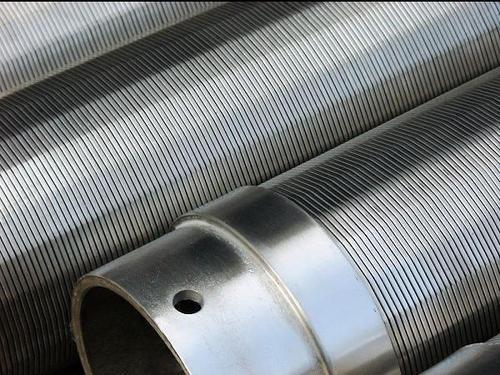

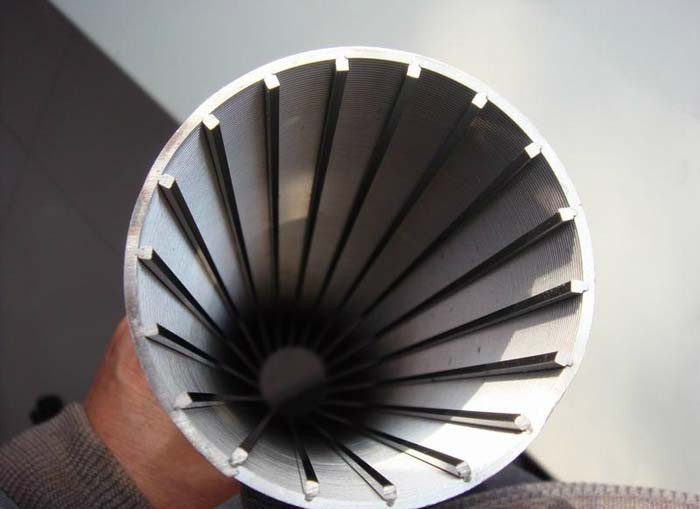

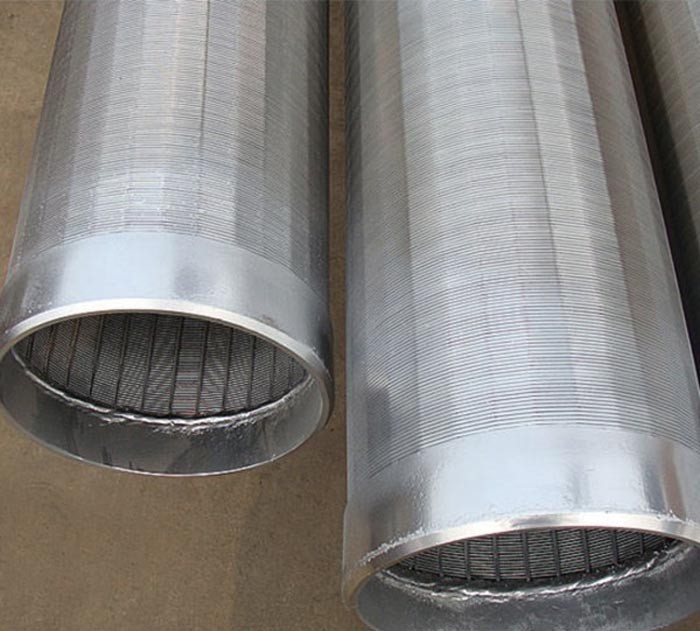

Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump

Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump

Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump
Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water PumpWedge Wire Stainless Steel Johnson Screen Filter Pipe For Water PumpWedge Wire Stainless Steel Johnson Screen Filter Pipe For Water PumpWedge Wire Stainless Steel Johnson Screen Filter Pipe For Water PumpWedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump
CategoriesStainless steel filtration
AlbumView larger image
BrandKTMT
Material:Stainless Steel Wire 304/316
Function:Screening Filter
Material:Stainless Steel Wire 304/316
Min slot:0.05mm-35mm(error:±0.03mm)
Standard length:1m/5.85m
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information



             Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump


Introduction:



The Strainer is a kind of filtered water tubing with the perforation. It can be used with the deep well pump, dive the water pump, also may be used in the water treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry, The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.



           Materials:302, 304, 304L, 316, 316L stainless steel wire and low carbon wire(galvanized iron),can be design according to the customers' request.

       Min Slot: 0.05mm-35mm(error:±0.03mm)

          Filter: From outside to inside

           Styles of connection: by welding or by threaded male/female coupling.

         Standard Length: 1m/5.85m



Specification for reference:



SIZE (INCH)

O.D (mm)

SLOT (INCH)

LENGTH (m)

COLLAPSE STERENG(PSI)

TENSILE WEIGHT(TON)

WRAP (thinck*deep)

(mm)

RODS

(mm)

4

117

0.040

3-6

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3-6

395

6

2.3*3.0

3.8mm/22

6

168.3

0.040

3-6

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3-6

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.020

3-6

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3-6

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3-6

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3-6

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3-6

167

11

3.0*5.0

3.8mm/50
