PP Melt Blown Filter with End caps

PP Melt Blown Filter with End caps

PP Melt Blown Filter with End caps
PP Melt Blown Filter with End capsPP Melt Blown Filter with End capsPP Melt Blown Filter with End capsPP Melt Blown Filter with End capsPP Melt Blown Filter with End caps
CategoriesPP melt blown filter
AlbumView larger image
BrandKTMT
Filtration Media:PP
End Caps:DOE/222Flat/226Fin/222Fin/226Flat
Length:9.75 to 40 inches (24.8 to 102 cm) nominal
Outside Diameter:2.5inch
Inner Diameter:1.1inch or 1.2inch
Max. operating temperature176˚F (80˚C)
Item:PP Melt Blown Filter with End caps
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

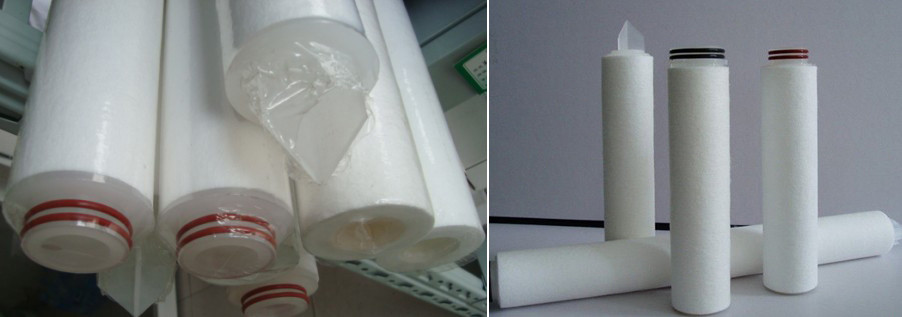

PP Melt Blown Filter Cartridge with end caps

Description:

Melt Blown Cartridges are manufactured from 100% Polypropylene construction. They offer excellent filtration and good thermal stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart taste, odor, or color to the filtered product and has superior chemical resistance for process fluid applications.

We provides 12 different end caps to all of our filter lines. The diversity of these end caps provides an endless variety of filtration needs for every industry.

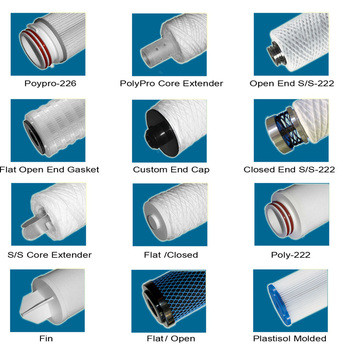

We can provide the following end caps:

Ø  Polypro-226


Ø  PolyPro Core Extender


Ø  Open End Stainless Steel-222


Ø  Flat Open End Gasket


Ø  Custom End Cap


Ø  Closed End Stainless Steel-222


Ø  Stainless Steel Core Extender


Ø  Flat / Closed


Ø  Poly-222

Ø  Fin

Ø  Flat / Open

Specification:


Filter medium:

PP melt blown

Relative filtration pore size:

1,3,5,10,20,30,50,75,100 µm

Length

10", 20", 30", 40",50’’

Outer diameter

60 ~ 85 mm

Inner diameter

28 ~ 30 mm

Interface

Flat, insert, screwed

End caps

DOE/222Flat/226Fin/222Fin/226Flat

Effective filtration area

≥0.045 m2/10"

Max. operating temperature

176˚F (80˚C)

Max. positive pressure

0.2 MPa(25°C)

Max. back pressure

0.1 MPa(25°C)

Others

special requirement of diameter and end caps can be customized



Features:


²  Spun bonded 100% polypropylene

²  High dirt holding capacity

²  Low pressure drop operating

²  Great chemical compatibility

²  Graded density pore size structure

²  No glue or any additives

²  Gram weight customize


Applications:


Potable Water

Beverage

Pre Filters for Reverse Osmosis Filters

Fine Chemicals

Metal Finishing

Plating Solutions
