Dust Collector Cages

Dust Collector Cages

Dust Collector Cages
Dust Collector CagesDust Collector CagesDust Collector CagesDust Collector CagesDust Collector Cages
CategoriesDust Filter Bag
AlbumView larger image
BrandKTMT
Cage StyleRound, Oval, Flat, Envelope
MaterialCarbon Steel, Galvanized Steel, 304/316Stainless Steels
ConstructionClamp, Chuck, Claw Join, Guide Plate
Cage TopRoll Flange With or Without Venture, Roll Band Low Groove, Split Collar, Split Ring, Flat Flange
Design1,2,3,4 pieces
Cage Vertical Wires8, 10, 12, 14, 16, 18, 20, 24 or Customized
Cage Diameter4 3/8" - 6 1/4" (112 -160mm )
Cage length3 - 33 ft (0.9 - 10m)
Wire DiameterGauge 9, 11,10 (3.2, 3.5, 3.8, 4mm)
Horizontal Ring Space4", 6", 8", 9" (100, 152, 200, 250 mm)
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

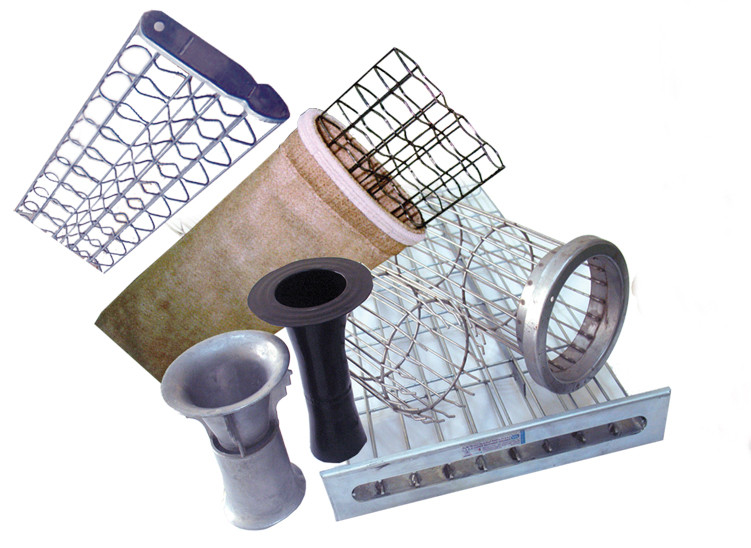

Dust Collector Cages


Introduction:


We manufacture cages to fit nearly any dust collector. Our cages can be made for high temperature, high moisture, acidic or other environments. Whatever your application, we can make a cage to meet your needs.

The filter bag cages are the support of filter bag and it should be light abd easy for installation and maintenance.

The quality of filter cage has directly bearing on the filtering state and service life of a filter bag.

Every cage we make can meet the requirement for tightness, smoothness and uprightness.



Specification:


Standard Sizing or Custom Built to Specific Specifications

Cage Style

Round, Oval, Flat, Envelope

Material

Carbon Steel, Galvanized Steel, 304/316Stainless Steels

Construction

Clamp, Chuck, Claw Join, Guide Plate

Cage Top

Roll Flange With or Without Venture, Roll Band Low Groove, Split Collar, Split Ring, Flat Flange

Design

1,2,3,4 pieces

Cage Vertical Wires

8, 10, 12, 14, 16, 18, 20, 24 or Customized

Cage Diameter

4 3/8" - 6 1/4" (112 -160mm )

Cage length

3 - 33 ft (0.9 - 10m)

Wire Diameter

Gauge 9, 11,10 (3.2, 3.5, 3.8, 4mm)

Horizontal Ring Space

4", 6", 8", 9" (100, 152, 200, 250 mm)

Surface Coatings

Epoxy, Teflon, Organic Silicon, Special Painting, Galvanizing or Upon Request

OEM: Specially designed to meet the customer's individual requirements
