Woven Fiberglass Dust Filter Bags

Woven Fiberglass Dust Filter Bags

Woven Fiberglass Dust Filter Bags
CategoriesDust Filter Bag

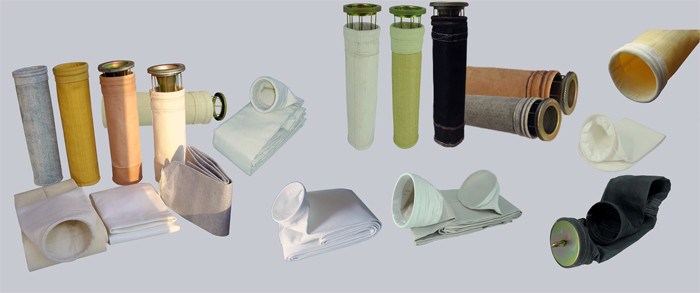

AlbumView larger image
BrandKTMT
MaterialsWoven Fiberglass Alkali free
Surface TreatmentPTFE Hydrophobic impregnated, PTFE Membrane
WeaveDouble Twill
Hydrolysis Resistance (Grade)1
Diameter of fiber5.5μm
Max. Operating Temperature Continuous/Surge oF (oC500/536 (260/280)
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-01-22
Detail Information

Woven Fiberglass Dust Filter Bags

Introduction:

Fiberglass Fabrics are woven for fiber orientation, and each fabric features its own unique weight, strength, and fabric characteristics
Surface finishes and chemical treatments that aid in the collection and release of the dust from the bags: PTFE Hydrophobic impregnated, PTFE Membrane
Ultrasonic welded seam for increased efficiency and reinforced mechanical strength
Our laboratories are equipped with sophisticated testing equipment used to analyze and evaluate all aspects of your process and application
Custom fabricated bag designs to meet the unique needs of your bag house installation



Specification:


Materials

Woven Fiberglass Alkali free

Code

KTMTGLA 301

KTMTX 301

KTMTA 331

Surface Treatment

PTFE Hydrophobic impregnated, PTFE Membrane

PTFE Hydrophobic impregnated, PTFE Membrane.  Fine fiber

PTFE Hydrophobic impregnated, PTFE Membrane

Weave

Double Twill

Double Twill

Double Twill


Weight
oz/yd² (g/m2) ±2.5%

22.41-25.07 (760-850)

22.41-25.07 (760-850)

22.41-25.07 (760-850)

Hydrolysis Resistance (Grade)

1

1

1

Air Permeability
 CFM @ ½" W.G 125PA
 (cm3/cm2/s @127PA)

4-10 (2-5)

4-10 (2-5)

4-10 (2-5)

  Tensile Strength
 lb/in (N/5CM)

Warp MD

274 (2400)

274 (2400)

274 (2400)

Weft CD

228 (2000)

228 (2000)

228 (2000)

Tensile Elongation (%)

Warp MD

3%

3%

3%

Weft CD

3%

3%

3%

Diameter of fiber

5.5μm

5.5μm

5.5μm

Max. Operating Temperature Continuous/Surge oF (oC)

500/536 (260/280)

500/536 (260/280)

500/536 (260/280)


Media Features:



²  Fiberglass has excellent resistance to most acids, but is attacked by hydrofluoric acid

²  Not recommended where bases and salts such as chlorides, bromides, and cyanides are present

²  Poor flex abrasion qualities

²  High tensile strength

²  Dimensional stability

²  High heat resistance, good thermal conductivity, and fire resistance

²  Outstanding Electrical Properties

²  Unaffected by sunlight, fungus or bacteria.

²  Finishes limited, maximum temperature range.

²  Glass fabrics are lower in cost than many other fabrics for similar applications.

²  Requires a 20 vertical wire minimum support cage when used in tubular filter bag form

²  Usually used in high heat applications.  Continuous operating temperature of 500oF (260oC)



Application:



l  Cement Plant

l  Power and Thermal power stations

l  Waste Incineration

l  Steel/Iron/Carbon black plants

l  Custom OEM Applications
