Homopolymeric Acrylic (PAN) Dust Filter Bags

Homopolymeric Acrylic (PAN) Dust Filter Bags

Homopolymeric Acrylic (PAN) Dust Filter Bags
CategoriesDust Filter Bag
AlbumView larger image
BrandKTMT
Fiber MaterialsPAN-Acrylic Homopolymer
ScrimPAN
Standard Finish OptionsHeat Set, Singed, Glazed, PTFE membrane
Weight oz/yd² (g/m2)14.75-16.22 (500-550)
Thickness Inch (mm)0.071-0.091 (1.8-2.3)
Air Permeability CFM@ ½" W.G125PA (m³/m².min@20012-21 (6-10)
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-09-23
Detail Information

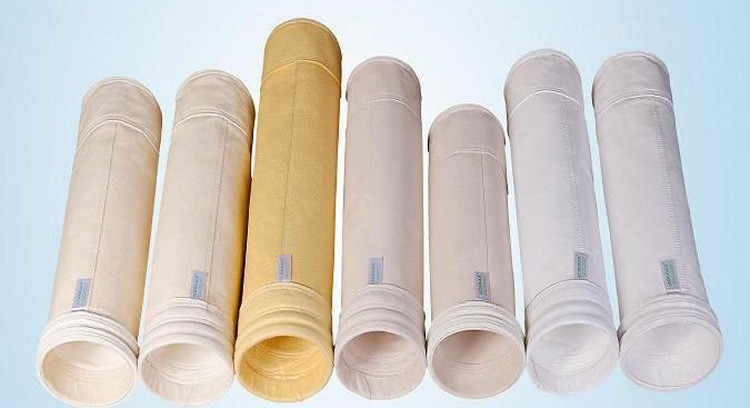

Homopolymeric Acrylic (PAN) Dust Filter Bags

Introduction:

Using the finest fiber material possible in the market and high-speed modern needling equipment, we manufacture our own filter media for our dust filter bags guaranteeing the highest quality, reliability, and consistency
A wide range of surface finishes and chemical treatments that aid in the collection and release of the dust from the bags
Ultrasonic welded seam for increased efficiency and reinforced mechanical strength
Our laboratories are equipped with sophisticated testing equipment used to analyze and evaluate all aspects of your process and application
Custom fabricated bag designs to meet the unique needs of your bag house installation



Specification:



Fiber Materials

PAN-Acrylic Homopolymer

Scrim

PAN

Standard Finish Options
(Special surface treatments available)

Heat Set, Singed, Glazed, PTFE membrane

Weight
oz/yd² (g/m2)

14.75-16.22 (500-550)


Thickness
   Inch (mm)

0.071-0.091 (1.8-2.3)

Air Permeability
 CFM@ ½" W.G125PA
 (m³/m².min@200PA )

12-21 (6-10)

  Tensile Strength
 lb/in (N/5CM)

Warp MD

80 (700)

Weft CD

114 (1000)

Tensile Elongation (%)

Warp MD

≤25

Weft CD

≤45

Thermal Shrinkage (%) at max continuous temp.

Warp MD

≤1

Weft CD

≤1.5

Max. Operating Temperature  oF (oC)

Continuous

260 (127)

Surge

284(140)

The data are based on laboratory conditions.
Testing based on specific operating conditions of each installation is recommended.



Media Feature:



-A type of acrylic, functions at higher temperatures

-Good resistance to most mineral and organic acids.

-Acrylic resistance to alkalis is inferior to most fibers except natural protein fibers such as silk and wool.

-Acrylic has good resistance to most oxidizing agents and is superior to polyamides and protein fibers in this respect.

-Excellent resistance to most common organic solvents.

-High resistance to hydrolysis and good temperature resistance.

-Not recommend for high concentration of strong alkalis at high temperatures.

-Acrylic is more costly than polyester and polypropylene.

-Continuous operating temperature 260 (127°C)



Application:



Ø  Power Generation

Ø  Paper, Pulp & Woodworking

Ø  Cement, Mining & Rock Products

Ø  Waste Incineration

Ø  Chemicals & Pharmaceuticals

Ø  Metals & Foundry

Ø  Food & Beverages

Ø  Custom OEM Applications

Ø  Most popular applications include: dryers, electric furnace, aluminum reduction and primary or secondary smelting.
