Home > Products > Air Filtration > Dust Filter Bag >

Anti-static Dust Filter Bags

Anti-static Dust Filter Bags

Anti-static Dust Filter Bags
Anti-static Dust Filter BagsAnti-static Dust Filter BagsAnti-static Dust Filter BagsAnti-static Dust Filter Bags
CategoriesDust Filter Bag
AlbumView larger image
BrandKTMT
Fiber MaterialsPolyester + Stainless steel
ScrimPolyester + Stainless steel
Standard Finishes (Special surface treatments)Heat Set, Singed, Glazed, PTFE membrane, Water and oil proof
Weight oz/yd² (g/m2)11.80-17.70 (400-600)
Thickness Inch (mm)0.063-0.091 (1.6-2.3)
Max. Operating Temperature oF (oC)265 (130)
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

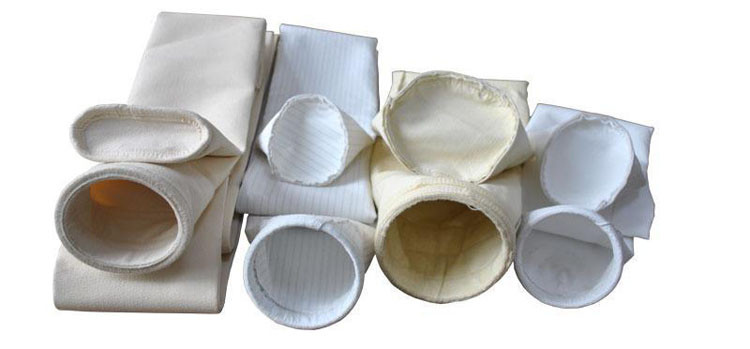

Anti-static Dust Filter Bags


Introduction:

Using the finest fiber material possible in the market and high-speed modern needling equipment, we manufacture our own filter media for our dust filter bags guaranteeing the highest quality, reliability, and consistency
A wide range of surface finishes and chemical treatments that aid in the collection and release of the dust from the bags
Ultrasonic welded seam for increased efficiency and reinforced mechanical strength
Our laboratories are equipped with sophisticated testing equipment used to analyze and evaluate all aspects of your process and application
Custom fabricated bag designs to meet the unique needs of your bag house installation



Specification:

Fiber Materials

Polyester + Stainless steel

Polyester

Scrim

Polyester + Stainless steel

Polyester + Stainless steel (stripe or grid)

Standard Finishes
(Special surface treatments available)

Heat Set, Singed, Glazed, PTFE membrane, Water and oil proof

Weight oz/yd² (g/m2)

11.80-17.70 (400-600)

11.80-17.70 (400-600)

Thickness  Inch (mm)

0.063-0.091 (1.6-2.3)

0.063-0.091 (1.6-2.3)

Air Permeability
 CFM@ ½" W.G125PA
 (m³/m².min@200PA )

25-33 (12-16)

25-33 (12-16)

  Tensile Strength
 lb/in (N/5CM)

Warp MD

126 (1100)

126 (1100)

Weft CD

148 (1300)

148 (1300)

Tensile Elongation (%)

Warp MD

≤25

≤25

Weft CD

≤40

≤40

Thermal Shrinkage (%) at max continuous temp.

Warp MD

≤1

≤1

Weft CD

≤1.5

≤1.5

Surface electric resistance(Ω

<10E5

<10E5

Volume electric resistance(Ω

<10E5

<10E5

Friction voltage(V)

<500

<500

surface density(uc/m2)

<7

<7

Max. Operating Temperature  oF (oC)

Continuous

265 (130)

265 (130)

Surge

302 (150)

302 (150)

The data are based on laboratory conditions.
Testing based on specific operating conditions of each installation is recommended.



Media Feature:



Excellent Anti-Abrasion

Anti-static filter media (use when static dissipation is required)

Stainless steel scrim supported felt

A woven scrim comprised partially of stainless steel yarns

Stainless steel fiber blend felt

Use of stainless steel fibers blended with standard fibers

Epitropic fiber blend felt

A blend of standard and epitropic (carbonized) fibers



Continuous operating temperature depending on the blended fibers
Popular Antistatic Composite Felts:

- Polyester Antistatic Needle Felts

- Acrylic Antistatic Needle Felts

- Aramid Antistatic Needle Felt

- PTFE Antistatic Needle Felt
- Customized Antistatic Needle Felts
