MTR Steel Top Loaded Pulse Pleated Filter cartridge

MTR Steel Top Loaded Pulse Pleated Filter cartridge

MTR Steel Top Loaded Pulse Pleated Filter cartridge
MTR Steel Top Loaded Pulse Pleated Filter cartridgeMTR Steel Top Loaded Pulse Pleated Filter cartridgeMTR Steel Top Loaded Pulse Pleated Filter cartridgeMTR Steel Top Loaded Pulse Pleated Filter cartridge
CategoriesAir Filter Cartridge
AlbumView larger image
BrandKTMT
Top capGalvanized steel
Snap ringNeedle felt
Inner meshGalvanized steel / stainless steel
Outside straps (optional)High temp.Ryton
Bottom capGalvanized steel / stainless steel
Potting compoundHigh temperature polyurethane
Filter media100% filament spinning spun bonded polyester
Continuous operating temp.130 ℃
FOB portTianjin,China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

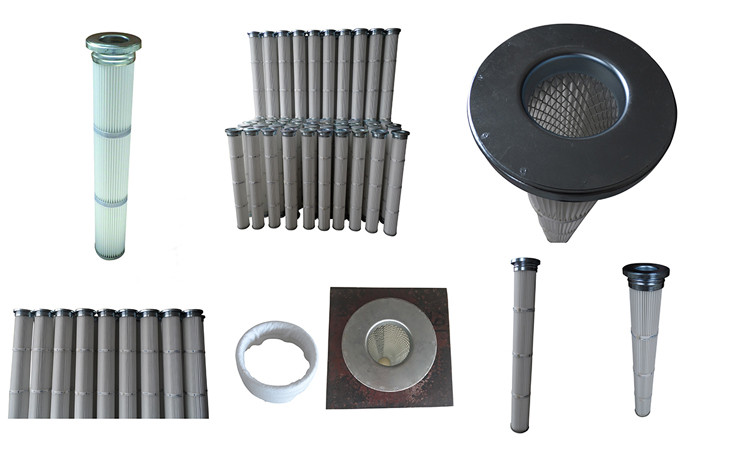

MTR Steel Top loaded pulse pleated filter cartridge is suitable for high temperature applications such as aluminum smelters and furnaces. This clean side removal cartridge is mounted with a snap ring and provides an alternative to filter bags. It can be installed in existing bag house dust collectors.



Standard structure:


Top cap

Galvanized steel

Snap ring

Needle felt

Inner mesh

Galvanized steel / stainless steel

Outside straps (optional)

High temp.Ryton

Bottom cap

Galvanized steel / stainless steel

Potting compound

High temperature polyurethane

Filter media

100% filament spinning spun bonded polyester

Continuous operating temp.

130


Optional after treatment:


PTFE
 anti-static, waterproof and anti-oil treatment.

Specification:


MTR Model

Cover Material

Tube Sheet H.D (mm)

Top Cover O.D (mm)

Bottom Cover    O.D (mm)

Filtration Surface/1m

Filtration Surface/2m

KTMT/LM 127

Galvanized metal

Φ127

φ146

φ114

1.1

2.3

KTMT/LM 133

Galvanized metal

Φ133

φ152

φ121

1.5

3.0

KTMT/LM159

Galvanized metal

Φ159

φ178

φ144

2.1

4.1

KTMT/LM 162

Galvanized metal

Φ162

φ178

φ146

2.3

4.6


Cartridge's length can be made according to customer's requirements, Please contact us if you have any questions about UTR Top Loaded pleated bag cartridge or our other filters.
