ETR Bottom Loaded Pulse pleated Filter Cartridge

ETR Bottom Loaded Pulse pleated Filter Cartridge

ETR Bottom Loaded Pulse pleated Filter Cartridge
ETR Bottom Loaded Pulse pleated Filter CartridgeETR Bottom Loaded Pulse pleated Filter CartridgeETR Bottom Loaded Pulse pleated Filter CartridgeETR Bottom Loaded Pulse pleated Filter CartridgeETR Bottom Loaded Pulse pleated Filter Cartridge
CategoriesAir Filter Cartridge
AlbumView larger image
BrandKTMT
Top capMolded Polyurethane (PU)-soft
Inner meshGalvanized steel / Stainless steel
Closed bottom capMetal / Molded Polyurethane (PU)-soft
Outside strapsGlued or Ultrasonic welded straps
Filter media100% filament spinning spun bonded polyester
Continuous operating temp.130 ℃
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

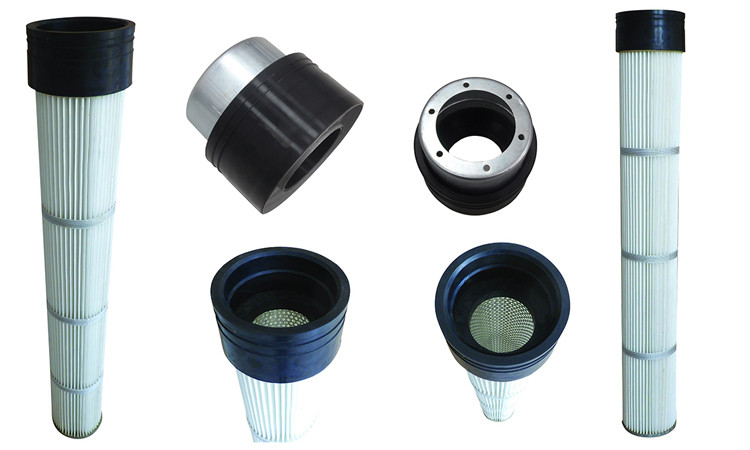

ETR Bottom Loaded Pulse pleated Filter Cartridge

Our Bottom Loader Pleated Bag cartridge is installed from the dirty side using a soft polyurethane top cap.

ETR standard structure:

Top cap

Molded Polyurethane (PU)-soft

Inner mesh

Galvanized steel / Stainless steel

Closed bottom cap

Metal / Molded Polyurethane (PU)-soft

Outside straps

Glued or Ultrasonic welded straps

Filter media

100% filament spinning spun bonded polyester

Continuous operating temp.

130


Optional after-treatment filter media:

Description

Specification

Chemical Properties

No

Material

Post-processing

Weight g/

Thickness  mm

Max.
Temp

Permeability

Oil, water proof

hydrolysis resistance

Acid resistance

Alkali resistance

1

20%polyester +80% cellulose

130

0.64

80

**

*

*

*

*

2

15% polyester+85% cellulose

124

0.7

80

**

*

*

*

*

3

100% cellulose

118

0.79

80

**

-

-

*

*

4

15%polyester +85% cellulose

Nano Flame Retardant

138

0.79

80

***

**

*

*

*

5

15%polyester +85% cellulose

Nano

132

0.84

80

***

**

*

*

*

6

100% polyester

260

0..62

130

**

**

*

**

*

7

100% polyester

Anti-static

260

0..61

130

**

**

-

**

*

8

100% polyester

Flame retardant

260

0.61

130

**

**

**

**

*

9

100% polyester

Oil,water proof

260

0.61

130

***

***

***

**

*

10

100% polyester

PTFE membrane

240

0.6

130

*

-

***

**

**

260

0.68

135

*

-

***

**

**

270

0.83

135

*

-

***

**

**

11

100% polyester

PTFE membrane flame retardant

260

0.62

130

*

_

***

**

**

12

100% polyester

Anti-static
PTFE membrane

260

1.01

135

*

-

***

**

**

13

100% polyester

New PTFE membrane

135

0.58

110

*

-

***

**

**

Note : - No , * ordinary , ** good , *** very good

Application
It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages, wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.

Specification

ETR Model

Cover Material

Top Diameter T.D (mm)

Bottom Cover    B.D (mm)

Filtration Surface/1m

Filtration Surface/2m

KTMT/LE 124

Rubber top + metal bottom

φ105

φ114

1.4

2.7

KTMT/LE153

Rubber top + metal bottom

φ128

φ153

2.3

4.6

Cartridge's length can be made according to customer's requirements, Please contact us if you have any questions about ETR bottom loaded pleated filter cartridge or our other filters.
