UTR Top Loaded Pulse Pleated Filter Cartridge

UTR Top Loaded Pulse Pleated Filter Cartridge

UTR Top Loaded Pulse Pleated Filter Cartridge
UTR Top Loaded Pulse Pleated Filter CartridgeUTR Top Loaded Pulse Pleated Filter CartridgeUTR Top Loaded Pulse Pleated Filter CartridgeUTR Top Loaded Pulse Pleated Filter CartridgeUTR Top Loaded Pulse Pleated Filter Cartridge
CategoriesAir Filter Cartridge
AlbumView larger image
BrandKTMT
Top capMolded Polyurethane (PU)-soft
Sealing ringRubber or good-grade silicone
Inner meshgalvanized steel or stainless steel
Outside strapsGlued or ultrasonic weld strap
Closed bottom capMolded Polyurethane (PU)-soft
Filter media100% filament spinning spun bonded polyester
Operating temperature107℃
PartsNo metal parts touch with the dusty gas
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information

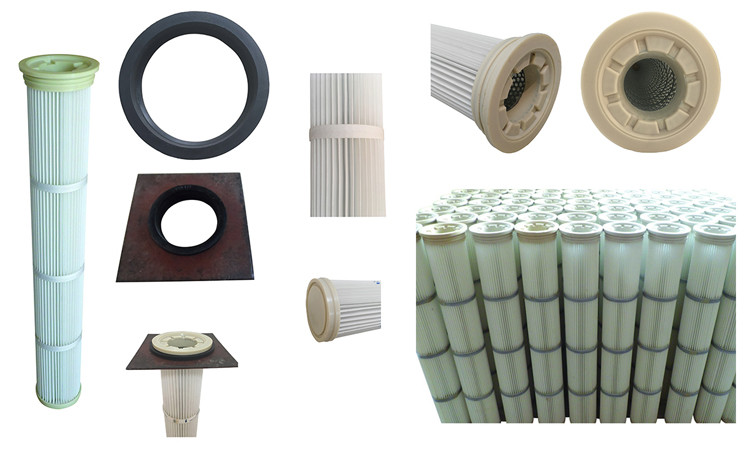

UTR Top Loaded Pulse Pleated Filter Cartridge

Top Loader Pulse pleated filter cartridge provides an alternative to conventional filter bags providing increased air flow. The top loader cartridges can be installed in existing bag house dust collectors by way of easy clean side installation.

Standard structure:



Top cap

Molded Polyurethane (PU)-soft

Sealing ring

Rubber or good-grade silicone

Inner mesh

galvanized steel or stainless steel

Outside straps

Glued or ultrasonic weld strap

Closed bottom cap

Molded Polyurethane (PU)-soft

Filter media

100% filament spinning spun bonded polyester

Operating temperature

107

No metal parts touch with the dusty gas



Optional after-treatment:



PTFE anti-static, waterproof and anti-oil treatment.

Application



It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages,

wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.



Optional after-treatment:
PTFE anti-static, waterproof and anti-oil treatment.
Application
It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages,
wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.

Specification:

Model

Cover Material

Tube Sheet H.D (mm)

Top Cover O.D (mm)

Bottom Cover    O.D (mm)

Filtration Surface/1m

Filtration Surface/2m

KTMT 133

Polyurethane

Φ133

φ142

φ120

2.0

4.0

KTMT 153

Polyurethane

Φ153

φ160

φ140

2.1

4.3

KTMT 159

Polyurethane

Φ159

φ169

φ145

2.3

4.6

KTMT 162

Polyurethane

Φ162

φ169

φ150

2.3

4.6
