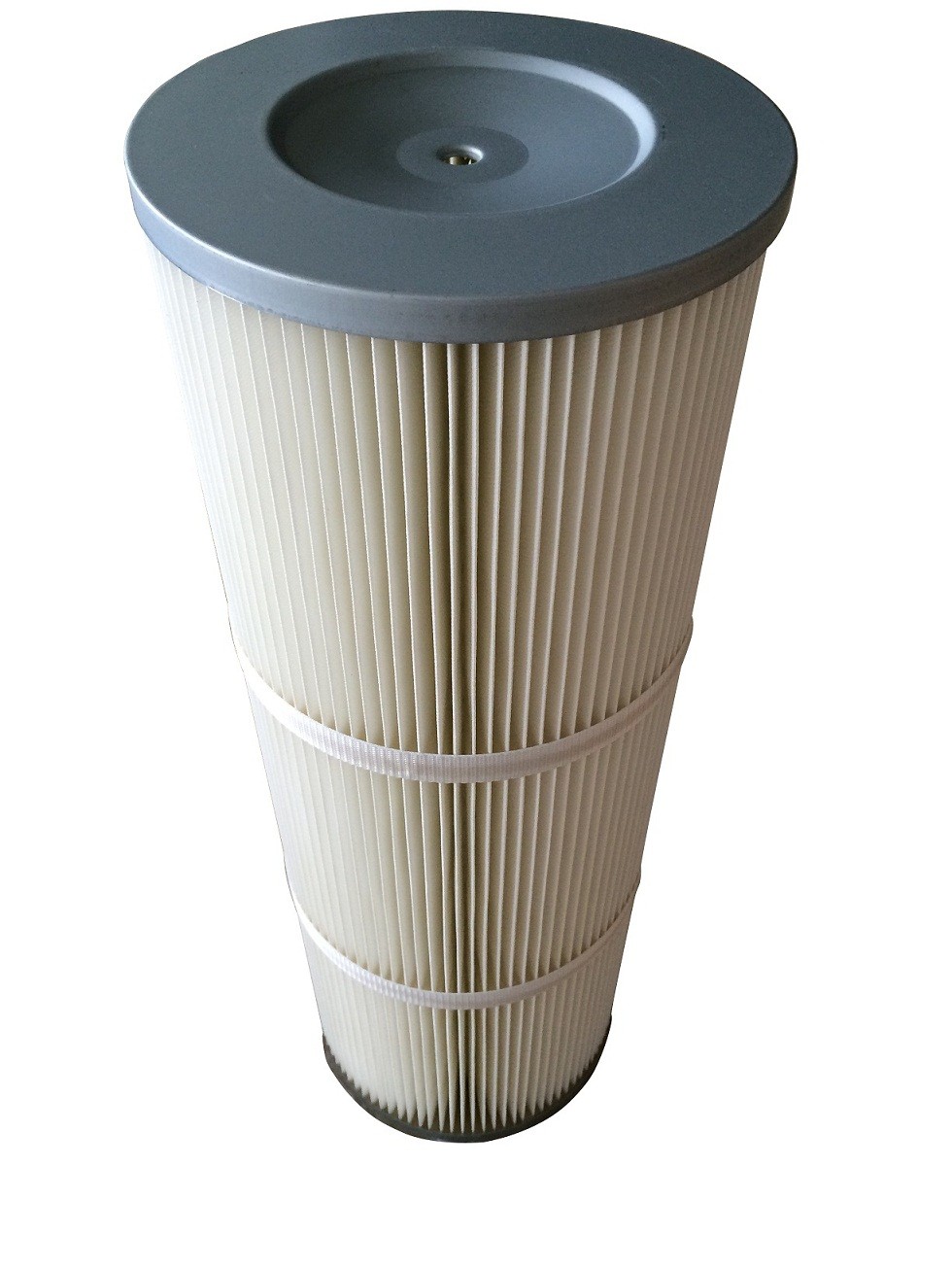

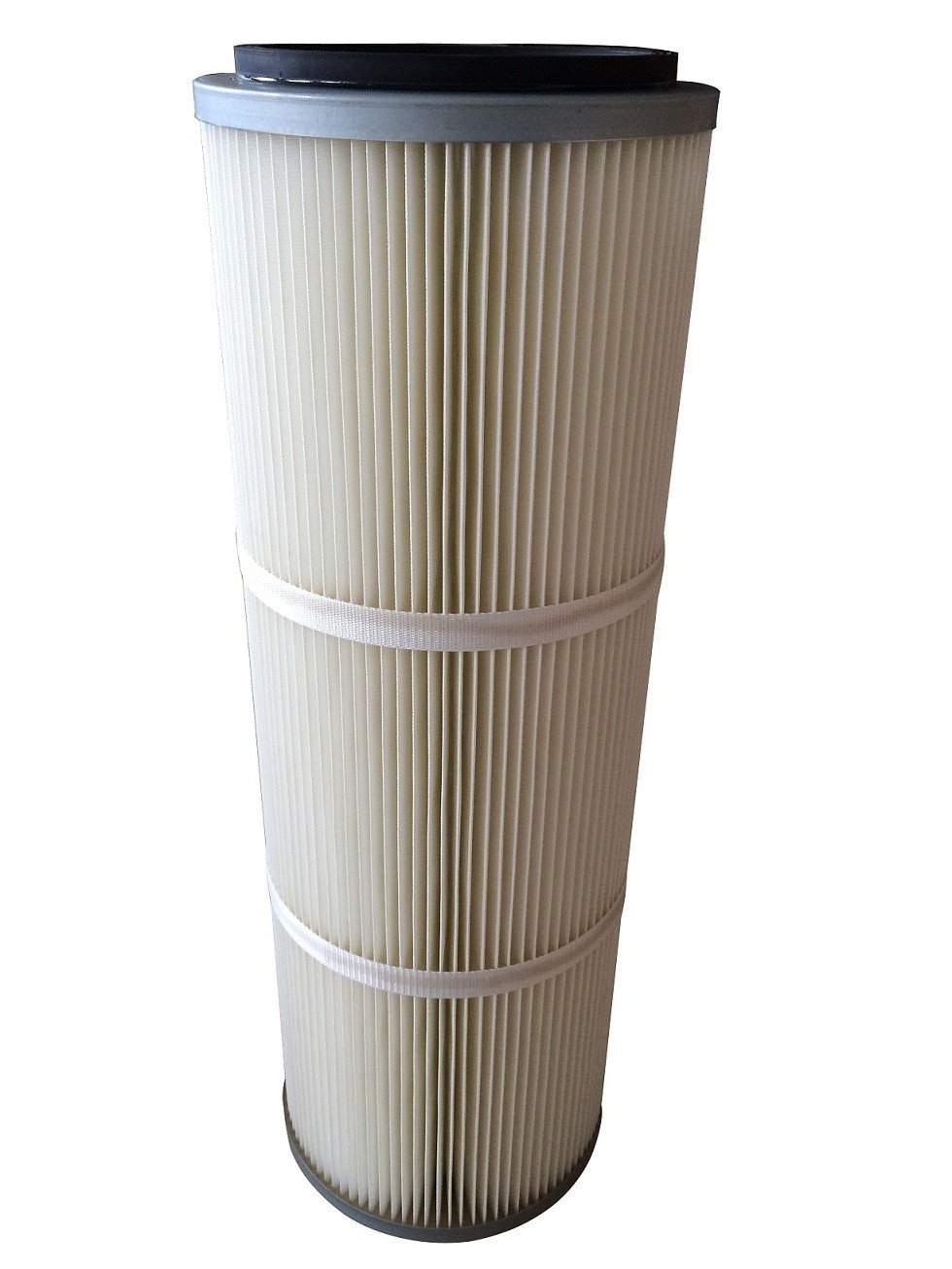

PTFE membrane coated Spun Bonded Polyester Air Filter Cartridge

PTFE membrane coated Spun Bonded Polyester Air Filter Cartridge

PTFE membrane coated Spun Bonded Polyester Air Filter Cartridge
PTFE membrane coated Spun Bonded Polyester Air Filter CartridgePTFE membrane coated Spun Bonded Polyester Air Filter CartridgePTFE membrane coated Spun Bonded Polyester Air Filter Cartridge
CategoriesAir Filter Cartridge
AlbumView larger image
BrandKTMT
Top capGalvanized steel or Stainless steel
GasketEPDM or Silicone
Inner meshGalvanized steel or Stainless steel
Outside strapsHigh temperature ryton or Optional
Bottom capGalvanized steel or Stainless steel
FOB portTianjin, China.
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

PTFE membrane coated Spun Bonded Polyester Air Filter Cartridge


Specification:


Cartridge Model

Top Cap OD mm

Top Cap ID mm

Bottom Cap OD mm

Bolt Hole mm

Height mm

Filtration Surface

KTMT/F 3266

Φ324

φ213

Φ324

φ14

660

9.4

KTMT/F 32100

Φ324

φ213

Φ324

φ14

1000

14.2

KTMT/F 3566

Φ352

φ241

Φ352

φ16

660

10

KTMT/F 35100

Φ352

φ241

Φ352

φ16

1000

15.1

Cartridge's length can be made according to customer's requirements, please inquire to our engineer.

Features:


PTFE Membrane Technology Equals Increased Efficiency
High durability, high efficiency Spun bonded polyester with imported PTFE membrane helps meet EPA requirements (PM2.5 , MACT, NESHAP) and will reduce Total cost of Ownership with :
* Reduced emissions (PM10, PM 2.5 and sub-Micron PM), filter efficiency :99.99+%;
*Lower operating differential pressure
*Longer service life, can be use 2-3 years under general working temperature  ;
*Aids in recovery from upset conditions such as moisture , boiler tube leaks , etc.
* Has excellent chemical corrosion resistance ,Provide a Chemical barrier to particulate matter/.
*Offers full dust collection efficiency upon start up as a result of high initial efficiency
*It Generates fan energy savings
*Working temperature: 93-135.
*higher throughput capabilities reduce capital costs as a smaller dust collector can match the dust collection demand.

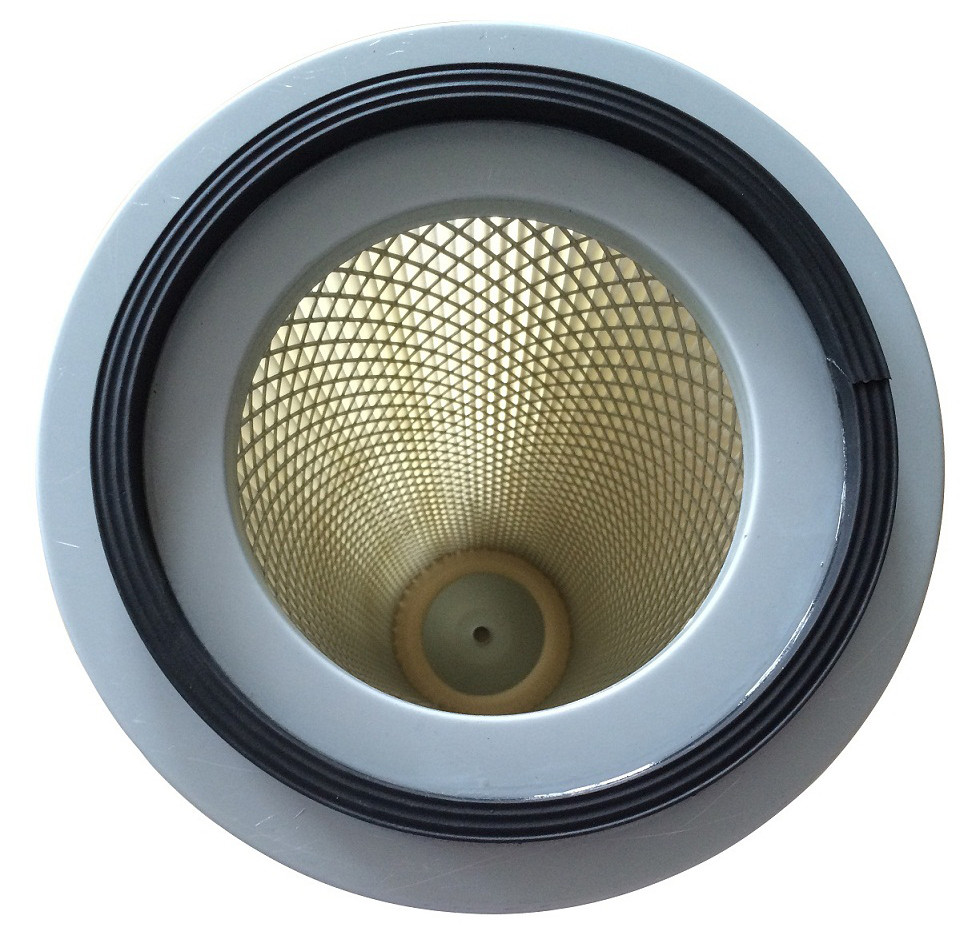

Construction:





Material (standard )

Material (alternative )

Top cap

Galvanized steel

Stainless steel

Gasket

EPDM

Silicone

Inner mesh

Galvanized steel

stainless steel

Outside straps

High temperature ryton

Optional

Bottom cap

Galvanized steel

stainless steel

potting compound

High temperature Polyurethane

Filter media

PTFE membrane coated Spun Bonded Polyester



Applications:


Filtration of very, very fine dust types
Welding fume, Shot casting, Pharmaceutical, Cement, Tobacco, Textile & others.
