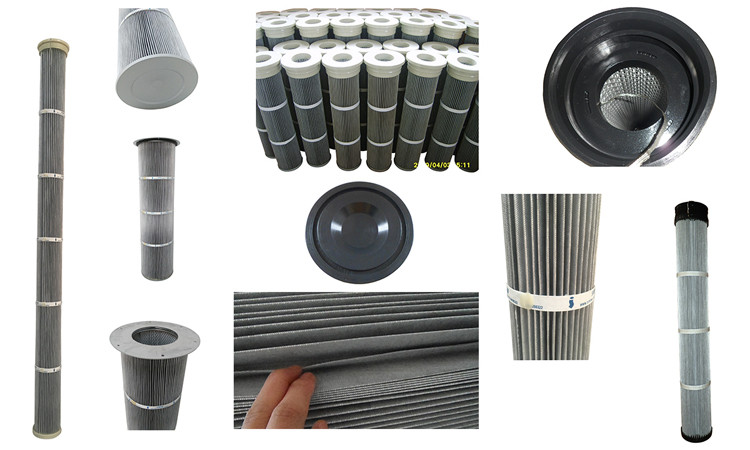

Anti-static air filter cartridge

Anti-static air filter cartridge

Anti-static air filter cartridge
Anti-static air filter cartridgeAnti-static air filter cartridgeAnti-static air filter cartridgeAnti-static air filter cartridgeAnti-static air filter cartridge
CategoriesAir Filter Cartridge
AlbumView larger image
BrandKTMT
Filter media:Polyester + ALU coating
Top cap:open steel plate, no rust
End cap:open or closed steel plate, no rust
Filter surface:various available
Inner core:galvanized mesh
Outer strip bandone piece as reinforcement
Gasketspecialty rubber to ensure airtight sealing
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2018-11-22
Detail Information

Anti-static is anti-static aluminum coated treatment, the filter surface covered with a layer of thin aluminum breathable conductive coating to avoid static flash, used for dust explosion-proof condition.

Features:
1) Filter media : Polyester + ALU coating
2) Source of media: Germany, Japan or China
3) Excellent resistance against electric conductance

Construction:
1) Top cap: open steel plate, no rust
2) End cap: open or closed steel plate, no rust
3) Filter surface: various available
4) Inner core: galvanized mesh
5) Outer strip band: one piece as reinforcement
6) Gasket: specialty rubber to ensure airtight sealing

Chemical Resistance:
1) Oil and water resistance: good
2) Hydrolysis resistance: Good
3) Acid resistance: Good
4) Alkaline Resistance: Good

Dust Release: Excellent

Applicable Temperature: Moisture 90°C, Dry 120°C

Specification



Cartridge Model

Top Cap OD mm

Top Cap ID mm

Bottom Cap OD mm

Bolt Hole mm

Height mm

Filtration Surface

KTMT 3266

Φ324

φ213

Φ324

φ14

660

9.4

KTMT 3566

Φ352

φ241

Φ352

φ16

660

10

KTMT 3266

Φ324

φ213

Φ324

φ14

660

9.4

KTMT 3566

Φ352

φ241

Φ352

φ16

660

10

Both the size of the cartridge and the shape of the caps are available in various specifications.
All configurations are changeable to meet the optimum performance of your applications.
Please contact us directly for more technical information.
