PE/PP/Nylon Filter Bag Size3#

PE/PP/Nylon Filter Bag Size3#

PE/PP/Nylon Filter Bag Size3#
PE/PP/Nylon Filter Bag Size3#PE/PP/Nylon Filter Bag Size3#PE/PP/Nylon Filter Bag Size3#PE/PP/Nylon Filter Bag Size3#PE/PP/Nylon Filter Bag Size3#
CategoriesLiquid filter Bag
AlbumView larger image
BrandKTMT
Filter MediaPolypropylene Felt, Polyester Felt, Nylon Multifil
Micron Rating1, 5, 10, 25, 50, 75, 100, 150, 200, 250, 300, 500, 800, 1000 μm
Top Ring StylesPP Ring, Galvanize O-Ring,SUS O-Ring, other customized styles
Top Ring MaterialsPolypropylene, Polyester, Nylon, Metal, SUS
SeamWelded, Sewing,Welded top and Sewing Bottom, Sewing top and Welded Bottom
TreatmentPOXL,PEXL,PTFE filmed,multi-layer, oil absorption,etc
ApplicationFood,chemical,power,oil,gas,medicine,machinery,textile,etc
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

Description

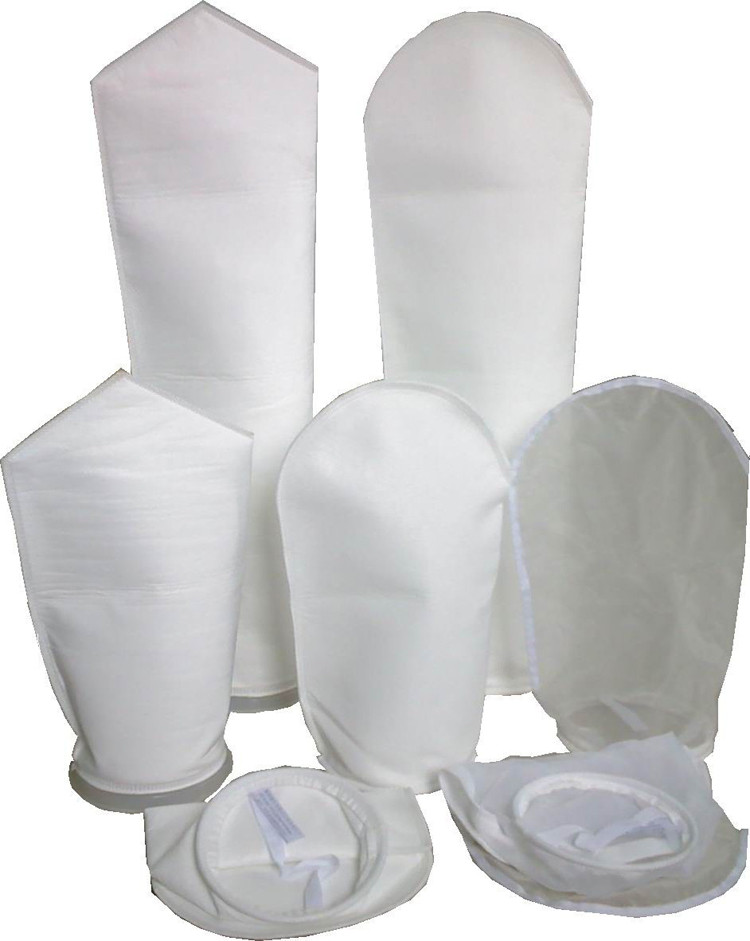

Filter bags have sewn construction and a glazed finish, which can be divided into two types: liquid filter bag and dust filter bag. All standard sizes are available with many different top rings to offer you the proper filter bag you need to adapt with your existing housings. Besides, the ratings from 1 to 1000 micron and 8 different medias suitable to your application.

Specification:



Raw Material

KTMT/USA

Efficient

99.9%

Standard Size

φ105x230mm(φ4’’x9’’)/OEM Welcomed

Filter Rating

1μm,2μm,5μm,10μm,15μm,25μm,etc

Ring Model

SS316,SS304,plastic,Zinc Coated

Features

100% no leak,harmless,acid proof,alkali-resisting,etc

Lifetime

5years

Warranty

12months

Working Time

7x24hours

Medium

Milk,juice,ink,chemical,oil,etc

Max.temperature

160

Treatment

POXL,PEXL,PTFE filmed,multi-layer, oil absorption,etc

Processing Way

Sewing/weld

Application

Food,chemical,power,oil,gas,medicine,machinery,textile,etc



Advantage:



1.Quality control

100% QC inspection before shipment. We got the Quality Management System Certificate: ISO9001:2008, so quality assurance is available here.



2.Technical support

If you have any problems about which type to choose or how to install, we can give you the professional suggestions based on our technical engineers' recommendation .



3.Reasonable price

We have our own filter cloth and filter bag production lines.From the material to the finished products, they all produced by ourselves, so we can assure you of a rather competitive price for you.



Item No#

Diameter(Inch)

Length(Inch)

mm

 1#

 7″

 17″

 180X420

 2#

 7″

 32″

 180X820

 3#

 4″

 9″

 100X230

 4#

 4"

 16″

 100X410

 5#

 6"

 21″

 152x520



Applications

--Chemical Industry: plastics industry,dry,paints,packing,tonner,etc.

--Minerals Industry: cement industry,coal mill,dryer system

--Metal Industry: iron and steel industry,coal-fired power,etc.

--Power generation and incineration: ferro alloy, Coal-fires power boilers,incinerator etc.
