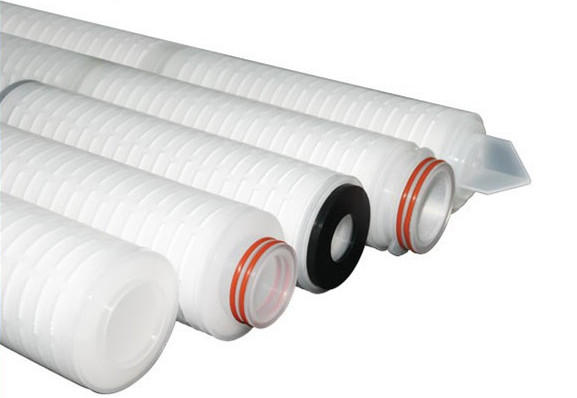

Hydrophobic PVDF pleated filter cartridge

Hydrophobic PVDF pleated filter cartridge

Hydrophobic PVDF pleated filter cartridge
Hydrophobic PVDF pleated filter cartridgeHydrophobic PVDF pleated filter cartridgeHydrophobic PVDF pleated filter cartridgeHydrophobic PVDF pleated filter cartridgeHydrophobic PVDF pleated filter cartridge
CategoriesPleated filter cartridge
AlbumView larger image
BrandKTMT
Filter mediumPVDF membrane
Length5”, 10
Diameter69mm
Micron rating0.1, 0.22, 0.45, 1, 3, 5, 10, 30, 60 (um)
End capdoe, 222/fin, 222/flat, 226/fin, 226/flat
Sealing materialsilicone, EPDM, NBR, viton, teflon
Sealing typesweating soldering
Effective filtration area0.4~0.7m2 /10
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

Hydrophobic PVDF Pleated Filter Cartridge

Introduction:

Polyvinylidene Fluoride(PVDF) membrane filter cartridge, also called kynar membrane, is a kind of fixed aperture depth filter cartridge with the filter media of fine PVDF fiber, formed by the poly partial fluorine ethylene membrane and the flow guiding layer, be of excellent heat and chemical resistance. One end shell and center rod are made of polypropylene, another is using PVDF, which can be used for ozone resistance. Each part of the seal using non-adhesive thermal fusion welding technology, filter micron rate range is from 0.1um to 5um. With the features of low pressure drop, high flow rate and long service life, the complete polypropylene structure has stable performance and wide chemical compatibility.



Specification:

Filter medium

PVDF membrane

Length

5”, 10", 20", 30", 40"

Diameter

69mm

Micron rating

0.1, 0.22, 0.45, 1, 3, 5, 10, 30, 60 (um)

End cap

doe, 222/fin, 222/flat, 226/fin, 226/flat

Sealing material

silicone, EPDM, NBR, viton, teflon

Sealing type

sweating soldering

Effective filtration area

0.4~0.7m2 /10"

PH value

1-13

Max. working temperature

90°C, 1.0Mpa

Max. positive pressure difference

Δp0.42pa at 60°C

Max. negative pressure difference

Δp0.28a at 60C

Max. sterilizing temperature

121 °C, 20min per time



Application:

1.    High purity gas in electronic industry

2.    Clean gas for aseptic packaging

3.    Seam filtration

4.    Oxidizing liquid and gas aseptic filtration

5.    Petroleum Industry



Features:

1.    Nature hydrophobic products, suitable for gas filtration

2.    Modified membrane is hydrophilic, which is used for liquid filtration

3.    Wide applicability, PH scope of application 1-13

4.    Be resistance to high temperature and oxidation

5.    Small pressure difference, big flow and long service life

6.    Each filter cartridge is washing with high water before leaving the factory.
