PES pleated filter cartridge

PES pleated filter cartridge

PES pleated filter cartridge
PES pleated filter cartridgePES pleated filter cartridgePES pleated filter cartridgePES pleated filter cartridgePES pleated filter cartridge
CategoriesPleated filter cartridge
AlbumView larger image
Filter MediaPolyethersulfone
Micron Rating0.1, 0.2, 0.45,0.65,1μm
Outside Diameter2.75
Filter SupportPolypropylene
Gasket/O-ringSilicone, EPDM, Viton, Teflon encapsulated Viton
End Cap/CagePolypropylene
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-06-20
Detail Information

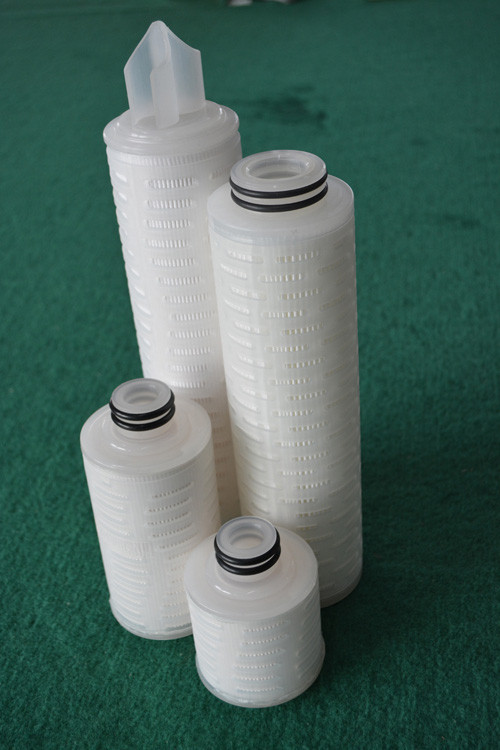

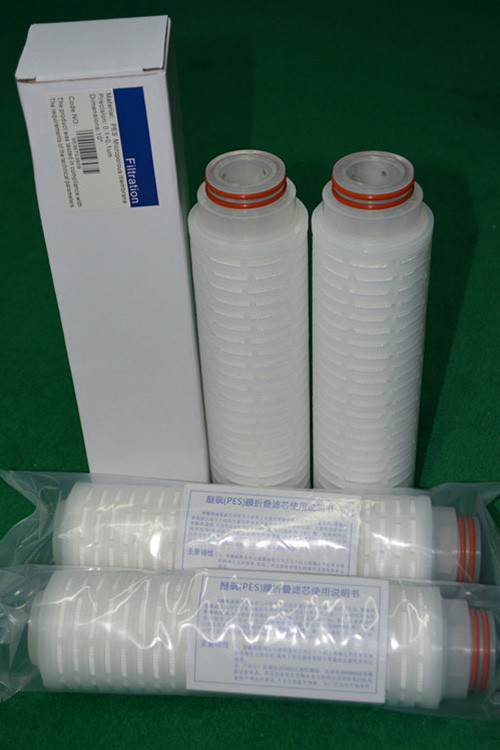

PES Pleated Filter Cartridge


Polyether Sulfone(PES) membrane filter cartridge is a kind of fixed aperture depth filter cartridge with the filter media of fine PES membrane, its pores accounted for more than 80% of the volume of membrane porosity, and  unique pore geometry, improving the filtration efficiency and the circulation of filtration difficult solution. The filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 0.65um. With the features of low pressure drop, high flow rate and long service life, high chemical resistance and thermal stability, excellent strength, PES membrane filter is the best choice as the pre-filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.



Filter media

PES membrane


5”, 10", 20", 30", 40"

Retention rate


Micron rating (µm)


End cap


Seal material

Silastic, NBR, EPDM, Viton

Sealed type

sweating soldering

Outside diameter


Effective filtration area

more than 0.6 m2/10"

Max. working temperature

85°C, 0.05Mpa

Max. tolerated temperature

140°C, 0.28Mpa

Max positive pressure difference

Δp0.42Mpa at 25°C

Max negative pressure difference

Δp0.21Mpa at 25°C

Sterilizing temperature

121 °C, 30min



1. Medical industry: The terminal filtration of medical liquid, cell debris, biological production, vaccine; etc.

2. Chemical industry: The filtration of organic solvent, chemical reagent, electroplate liquid

3. Food industry: drinking water, mineral water, beverage, beer, wine

4. Electronic industry: Pre-filtration on water system both for counter infiltration,, the terminal filtration of deionized water, high-purity water, ultra-pure water equipment, chemical raw materials.


1.    Wide chemical compatibility and large output; small pressure difference and long service life.

2.    Wide filtration precision range and more choices, can satisfy all kinds of requirements of the application.

3.    Hot-melt technology, solid and non polluting products.

4.    Uniform aperture distribution, good filter effect.

5.    Good resistance to heat, acid and alkali.

6.    Can washed easily with common method, high-pressure disinfection and steam sterilization.
