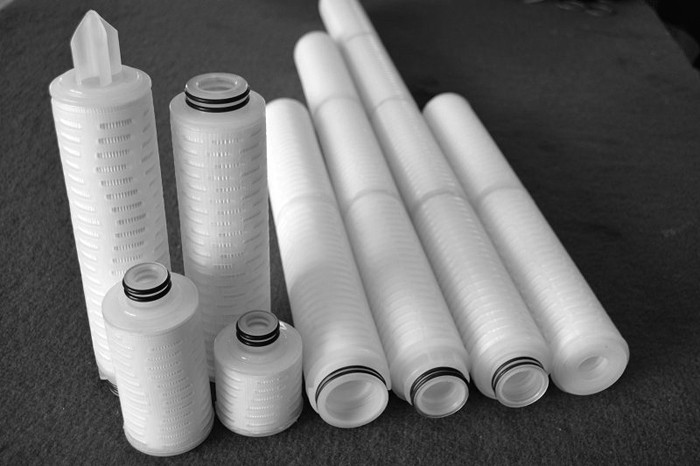

PP pleated water filter cartridge

PP pleated water filter cartridge

PP pleated water filter cartridge
PP pleated water filter cartridgePP pleated water filter cartridgePP pleated water filter cartridgePP pleated water filter cartridgePP pleated water filter cartridge
CategoriesPleated filter cartridge
AlbumView larger image
BrandKTMT
Filter MediaPolypropylene
Length5
Micron Rating0.1,0.22,0.45,0.65,0.8,1, 2,3,5, 10, 20,30,40, 50, 60μm
Outside Diameter2.75
CorePolypropylene
Filter SupportPolypropylene
Gasket/O-ringSilicone, EPDM, Viton, NBR,Teflon encapsulated Viton
End Cap/CagePolypropylene
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-06-20
Detail Information
PP Pleated Water Filter Cartridge

Product Description:

PP pleated water filter cartridge adopts the polypropylene membrane as the main filter material, the cartridge is a kind of advanced fixed-deep filter cartridge. Its filter micron rate range can varies from 0.1um to 60um. The filtering precision will not easily affected by the pressure fluctuation of the filter membrane. Because of its advantages of low pressure, high flow rate, long service life, good filtering accuracy and lower economic costs, etc., it is welcomed by many customers at home and abroad.



Material of Construction

• Filter Media: Polypropylene
• Support : Polypropylene
• Core / Cage / End adaptor: Polypropylene
• Sealing Technology: Thermal bonding
• Seal Material: Silicone, EDPM, Buna, Viton,  Teflon, E-FKM
• Micron Rating:  0.1µm, 0.22µm, 0.45µm, 0.65µm,0.80µm, 1µm, 3µm, 5µm, 10µm, 20µm, 50µm
• Filtration Area: 0.61m2  each 10" length

Dimensions

• Outside diameter: 2.7” (69mm)
• Length: 5", 10", 20", 30", 40"



Specification:

Model PPF

Micron Rating

End Adaptor

Seal

Length

PPF

0.10:0.1μm

0.20:0.2μm

0.45:4.5μm

10:1μm

30:3μm

......

500:50μm

......

CODE

O - DOE/Double Open End

1 - 226/Fin

2 - 222/Fin

3 - 222/Flat Closed

4 - 226/Flat Closed

5 - 215/Flat Closed

6 - O-Ring Insert/Flat Closed

E - EPDM

N - Buna

S - Silicon

V - Viton

T - Telfon

F - FKM

5:5"

10:10"

20:20"

30:30"

40:40"



Features:

--Excellent performance of chemical compatibility.

--High flow rate, low pressure drop, long work life.

--Better performance removal rating meets all-purpose application.

-- Hot melting seal enhances the strength and reduce the dissolved matter.

-- Pleated design provides high dirt holding and suspended solids capture.

Application:

• Pre-filtration for RO system
• Solvents, selected acids & lyes, chemical industry.
• Semiconductor, Electronic industry ultrapure water system
• Food and beverage
• Oil and Gas industry.
• Pharmaceutics
• Paints, coatings and plating solutions
