0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage

0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage

0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage
0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage
CategoriesPleated filter cartridge
AlbumView larger image
BrandKTMT
Model001
Filter MediaNylon 6
Length5
Micron Rating0.1, 0.2, 0.45,0.65,1μm
Outside Diameter2.75
CorePolypropylene
Filter SupportPolypropylene
Gasket/O-ringSilicone, EPDM, Viton, Teflon encapsulated Viton
End Cap/CagePolypropylene
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-06-20
Detail Information
0.45Micron Nylon66 Pleated Filter Manufacturer For Food And Beverage

Product Description:

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries. Main features:Hydrophilic stability, strong flexibility, high entrapment rate, excellent chemical resistance, especially suitable for filtering of the organic solvent. Forward and reverse pressure shock resistance.



Features & Benefits

A. Hydrophilic Nylon 6 membrane pleated cartridges with absolutely rated

B. Cartridges consist of a Nylon 6 membrane with thermally bonded polypropylene components to provide a very durable filter with only two materials of construction.

C. Superior flow rate and efficiency maximizing performance

D. Non-fiber releasing according to pharmaceutics and food industry requirements.

E.Processing better performance of high temperature-resistance,acid and base resistance.

F. Remove particles and microorganisms greater than 0.2µm from gas and liquid

G. Cartridges 100% integrity tested by bubble point and diffusional flow to ensure consistent and reliable performance

H. Flushed with ultrapure water to remove any manufacturing debris

I. No adhesive, thermal bonded manufacturing without adhesives

 Specifications:

Product

 Pleated filter cartridge

Material

Nylon 6

Length

5'',10'',20'',30'',40''

Outer diameter

70mm

Inner diameter

26mm

Interface

Flat, insert, screwed

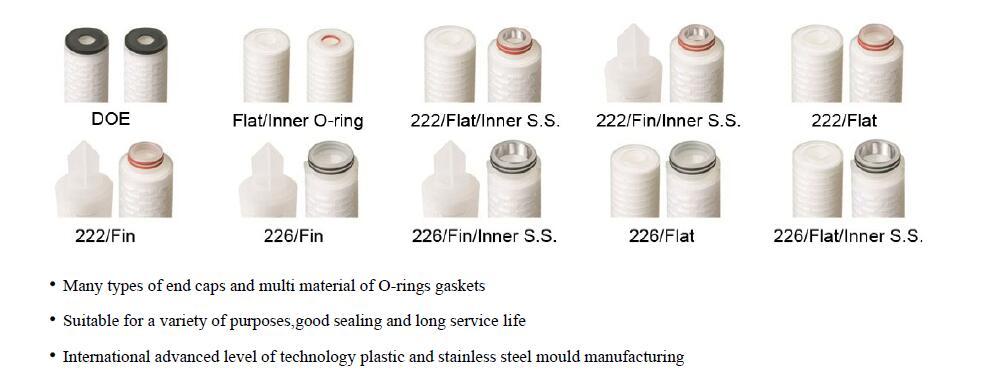

End cap

215flat,222flat, 222fin, 226flat, 226fin

Operation Conditions:

Normal Operating Temperature

Up to 60°C(140°F)

Max. Operating Temperature

85°C(185°F)

Max. Differential Pressure:

Normal Flow Direction

4.2 bar (60psi) at 25°C(77°F)

Reverse Flow Direction

2.1 bar (30psi) at 25°C(77°F)

PH Value compatibility

6-13



Applications

A. Final filtration for bacteria removal in reverse osmosis,deionization and other ultrapure water systems

B. Particle filtration for ultrapure chemicals

C. Semiconductor, Electronic industry ultrapure water system

D. Food and beverage, drinking water treatment

E. Plating solutions

F. Pharmaceuticals



Packing and Shipping:

Packing: export standard package: 1pc filter cartridge/ 1 poly bag; 12 or 20 pcs in one big carton, or according to customer's requirement.

Shipping: 10-15 workdays after receipt of the deposit. And can deliver by sea, by air, or as customer’s requirement.
