PF Series High Flow Pleated Cartridge Filters

PF Series High Flow Pleated Cartridge Filters

PF Series High Flow Pleated Cartridge Filters
PF Series High Flow Pleated Cartridge FiltersPF Series High Flow Pleated Cartridge FiltersPF Series High Flow Pleated Cartridge Filters
Categorieshigh flow filter cartridge
AlbumView larger image
BrandKTMT
Filter MediaPolypropylene,Glass Fiber
Length40
Outside Diameter6 inch (152 mm)
Filtration Rating1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Seal MaterialEPDM
FOB portTianjin,China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information

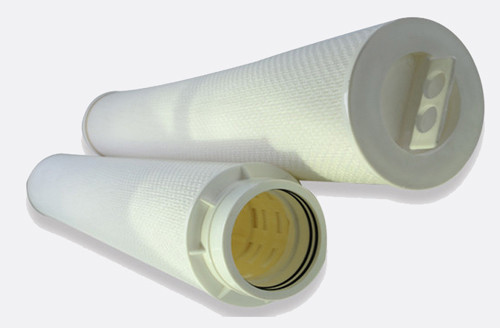

PF Series High Flow Pleated Cartridge Filters

Description:

PF Series Pleated High Flow Cartridge Filters are made of polypropylene or glass fiber materials, replacement filter cartridges for the depth filtration and other 2.5" diameter filters for the high flow applications. The water treatment volume for per pleated high flow filter cartridge equals to 10 pcs 40 inch length and 2.5" outer diameter slim filter cartridges, inner O-ring insure no bypass and handle design makes more easier to install. Because for high dirt holding capacity, long service life and wide chemical compatibility the pleated high flow filter could be used in many applications, such as pre-filtration of RO, power plant water system, paints and others crucial fluid filtration industries.



Specification:



Filter Media

Polypropylene,Glass Fiber

Length

40"(1016 mm)

Outside Diameter

6 inch (152 mm)

Filtration Rating

1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm

Support/Drainage

Polypropylene (PP)

End Cap Material

Glass fiber reinforced Polypropylene (PP)

Seal Material

EPDM



Features:

- Pleated high flow filters are easier install and replacement

- The pleated cartridges are high flow rates and low pressure drops

- High flow pleated filters are wide chemical compatibility for different

applications

- Pleated high flow cartridge filters have stable good filtration efficiency

and long service life

- One high flow filters equals to 10 pcs 40 inch length and 2.5" outer

diameter slim filters,save much the labor cost



Operation Data:

Maximum Operating Temperature

82

Maximum Differential Pressure

3.4Bar 82

Suggested Maximum Flow Rate

40" - 1300 LPM



KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology



Application:

-- Petrochemical, refineries

-- Paints, inks, magnetic media

-- Food and beverage filtration

-- Sea water desalination and RO pre-filtration

-- Power plant water treatment

-- API ,solvents, and water filtration in biopharm market
