MF Series High Flow Pleated Cartridge Filters

MF Series High Flow Pleated Cartridge Filters

MF Series High Flow Pleated Cartridge Filters
MF Series High Flow Pleated Cartridge FiltersMF Series High Flow Pleated Cartridge Filters
Categorieshigh flow filter cartridge
AlbumView larger image
BrandKTMT
Filter MediaPolypropylene,Glass Fiber
Length40
Outside Diameter6 inch (152 mm)
Filtration Rating1μm,3μm,5μm,10μm,20μm,50μm,100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Seal MaterialEPDM, Viton
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-03-27
Detail Information

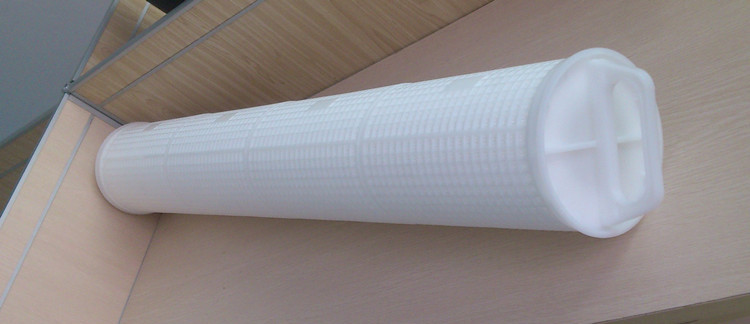

MF Series High Flow Pleated Cartridge Filter

Description:



MF Series High Flow Pleated Cartridge Filters are designed to be used in different filter housings which install 1 to 37 pieces cartridge filters. The pleated large flow filter cartridges are made by polypropylene or glass fiber pleated filter media, large filter area and high filtration efficiency. The max flow pleated cartridge filters can be used for a variety of important industrial applications for different high flow rate request. High flow pleated cartridge filters reduce the number of normal filter cartridges save much cost and manpower, longer service life and high dirt holding capacity.



Specification:



Filter Media

Polypropylene,Glass Fiber

Length

40"(1016 mm),60"(1524 mm)

Outside Diameter

6 inch (152 mm)

Filtration Rating

1μm,3μm,5μm,10μm,20μm,50μm,100μm

Support/Drainage

Polypropylene (PP)

End Cap Material

Glass fiber reinforced Polypropylene (PP)

Seal Material

EPDM, Viton







Features:


- High Flow Pleated Cartridge Filters are high intensity & long service life

- High flow pleated cartridge filters are large flow rate and high dirt holding capacity

- Pleated large flow filter cartridges are easy to install and replace, save

manpower and times

- The sealing O-ring design no bypass to improve the filtering efficiency of pleated high flow filters

- Max flow pleated cartridge filters have wide range of chemical compatibility and suitable for a variety of fields



Operation Data:



Maximum Operating Temperature

80

Maximum Differential Pressure

3.4Bar 80

Replacement recommend pressure drop

2.4Bar 20

Suggested Maximum Flow Rate

40" - 1300 LPM



KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology



Application:


-- Power plant condensed water filtration

-- Chemical industry,microelectronics industry filtration

-- Petroleum chemical industry related filtering

-- Drinking water,edible oil,beverage,beer,milk filtration

-- R.O.security filtration and sea water desalination

-- Pharmaceutical ingredients,solvents,and water filtration
