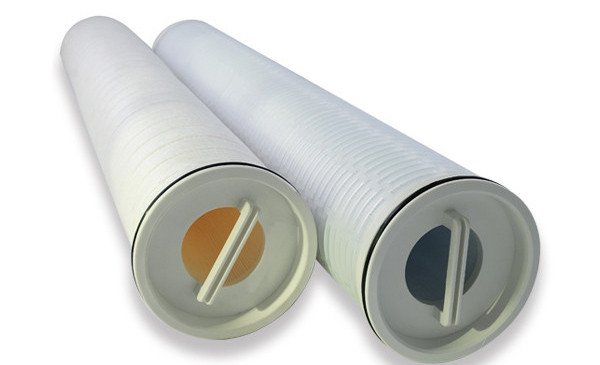

HF Series High Flow Pleated Cartridge Filters

HF Series High Flow Pleated Cartridge Filters

HF Series High Flow Pleated Cartridge Filters
HF Series High Flow Pleated Cartridge FiltersHF Series High Flow Pleated Cartridge FiltersHF Series High Flow Pleated Cartridge FiltersHF Series High Flow Pleated Cartridge Filters
Categorieshigh flow filter cartridge
AlbumView larger image
BrandKTMT
Filter MediaPP Melt blown,Pleated glass fiber,Pleated depth PP
Length20
Outside Diameter6 inch (152 mm)
Filtration Rating1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Seal MaterialEPDM,NBR
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Update Time2019-07-18
Detail Information
HF Series High Flow Pleated Cartridge Filters

Description:

HF Series High Flow Pleated Cartridge Filters are a new products which developed by KTMT company, the outer diameter usually make 6 inch (152 mm), coreless and outside hard framework, single open end when the other end is sealed with O-ring end cap, liquid flow from inside to outside pattern. The large diameter design of high flow pleated cartridges enlarge big filtration area to save the quantities of filter cartridges, high flow rate when good filtration efficiency, wide of application and chemical compatibility, excellent filtration material for industrial fluid filtration system.



Specification:

Filter Media

PP Melt blown,Pleated glass fiber,Pleated depth PP

Length

20"(508 mm),40"(1016 mm),60"(1524 mm)

Outside Diameter

6 inch (152 mm)

Filtration Rating

1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm

Support/Drainage

Polypropylene (PP)

End Cap Material

Glass fiber reinforced Polypropylene (PP)

Seal Material

EPDM,NBR



Features:

- The highest flow rate of pleated filter cartridges could get 110 M3/H

- Gradient pore structure of high flow pleated filters provide layered filter

function

- High flow pleated cartridge filters are well filtration efficiency and

reasonable cost

- The reduction of filtration system maximum 50% when use pleated

high flow filters

- Out-to-in filtration constriction of mass flow pleated cartridges ensure

holding all impurities stay inside the filter

- The Normal size of mass flow pleated filters have 20 inch, 40 inch and

60 inch, special specifications can be customized.



Operation Data:

Maximum Operating Temperature

PP Melt Blown: 65

Pleated depth PP: 82

Pleated glass fiber: 121

Maximum Differential Pressure

PP Melt Blown: 1.03 Bar at 65

Pleated depth PP: 3.4 Bar at 82

Pleated glass fiber: 3.4 Bar at 121

Suggested maximum flow of water

20.69 inch length: 660 LPM

40.69 inch length: 1,300 LPM

60.69 inch length: 1,900 LPM

Recommend Change out Differential Pressure

2.4 Bar at 20



KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology



Application:

--Paints and coatings

--Solvents, API and water filtration in Bio field

--Microelectronic,film and resin

--Pre-filtration of RO and sea water desalination

--Water filtration in Power generation

--Bottled water,high fructose,edible oil,soft drink and milk

-- Pre-filtration of ultrapure water.
