Threadiness Glass Fiber Wound Cartridges

Threadiness Glass Fiber Wound Cartridges

Threadiness Glass Fiber Wound Cartridges
Threadiness Glass Fiber Wound CartridgesThreadiness Glass Fiber Wound CartridgesThreadiness Glass Fiber Wound CartridgesThreadiness Glass Fiber Wound CartridgesThreadiness Glass Fiber Wound Cartridges
CategoriesString Wound Filter Cartridge
AlbumView larger image
BrandKTMT
Filter MediaThreadiness Type Glass Fiber
Micron Rating1, 5, 10, 20, 30, 50, 75, 100 μm
CorePolypropylene, SUS304, SUS316
Inside Diameter1.1
Outside Diameter2.36
Length5
Gasket/O-ringSilicone, EPDM, Viton, Teflon encapsulated Viton
End CapFlat ,222 O-Ring,226 O-Ring, Fin
ItemThreadiness Glass Fiber Wound Cartridges
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOC
Update Time2019-01-22
Detail Information

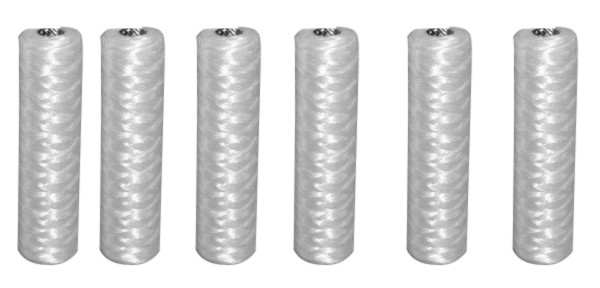

Threadiness Glass Fiber Wound Cartridges

Description:



KTMT threadiness glass fiber wound filter are kinds of classical micron string wound filter, the important feature of this filter is high temperature withstanding capacity. The maximum temperature can up to 400(750°F), provide best stability in filtration process. It’s inner tight and outer loose glass fiber spiral wound structure lead to well filtration effect.



Feature:



1.    Good resistance to acid, alkali corrosion.

2.    Large surface area enhancing liquid filtering effect.

3.    Well dirt holding capacity at low pressure drop

4.    Withstand high temperature, satisfying the critical application

5.    well filtering effect and long service life

6.    Threadiness glass fiber no drop and stable structure

7.    Double open end (DOE) and many kinds of end caps are available to install various housings







Specification:



Filter Media

Threadiness Type Glass Fiber

Micron Rating

1, 5, 10, 20, 30, 50, 75, 100 μm

Core

Polypropylene, SUS304, SUS316

Inside Diameter

1.1"( 28mm),1.2"(30mm)

Outside Diameter

2.36"(60mm),2.4"(61mm), 2.5"(63mm), 2.55"(65mm)

Length

5",9.75"9.8",10",20",30",40",50"

Gasket/O-ring

Silicone, EPDM, Viton, Teflon encapsulated Viton

End Cap

Flat ,222 O-Ring,226 O-Ring, Fin



Operating date:



Different Material

PP

Bleached Cotton

Glass Fiber

Maximum Operating Temperature

60(140)

150(300)

400(750)



Maximum Differential Pressure

2.7 bar at 27 (50 psi at 80)

1.4 bar at 60 (20 psi at 140)

0.7 bar at 82 (10 psi at 180)

Recommended Change Out Differential

Pressure

1 bar (14psi)





KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology



Application:


-- Industrial oil/water separation

-- Petrol chemical process

-- Many crucial fields liquid filtration

-- Condensate water filtration in power generation

--Solvents filtration in BioPharm market

--Paints and coatings, Petrochemical, Refineries

-- Pre-filtration of ultrapure water.
