China Supplier Cotton String Wound Filter Cartridge with stainless steel core

China Supplier Cotton String Wound Filter Cartridge with stainless steel core

China Supplier Cotton String Wound Filter Cartridge with stainless steel core
China Supplier Cotton String Wound Filter Cartridge with stainless steel coreChina Supplier Cotton String Wound Filter Cartridge with stainless steel coreChina Supplier Cotton String Wound Filter Cartridge with stainless steel coreChina Supplier Cotton String Wound Filter Cartridge with stainless steel coreChina Supplier Cotton String Wound Filter Cartridge with stainless steel core
CategoriesString Wound Filter Cartridge
AlbumView larger image
BrandKTMT
Filter MediaBleached Cotton
Micron Rating1, 5, 10, 20, 30, 50, 75, 100 μm
CorePolypropylene, SUS304, SUS316
Inside Diameter1.1
Outside Diameter2.36
Length5
Gasket/O-ringSilicone, EPDM, Viton, Teflon encapsulated Viton
End CapFlat ,222 O-Ring,226 O-Ring, Fin
FOB portTianjin, China
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOC
Update Time2019-01-22
Detail Information

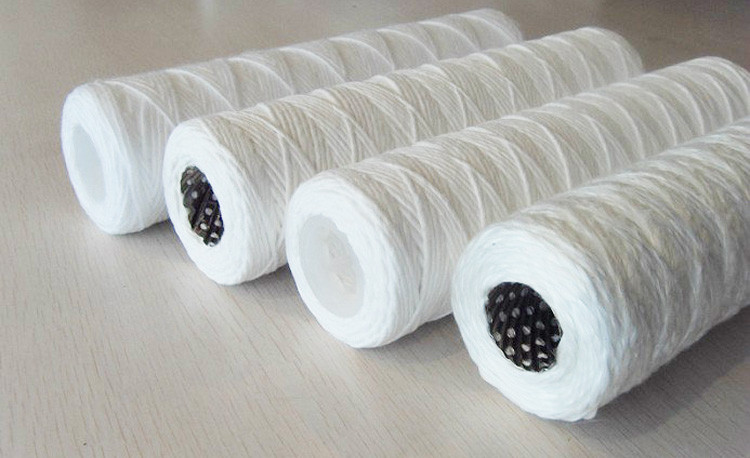

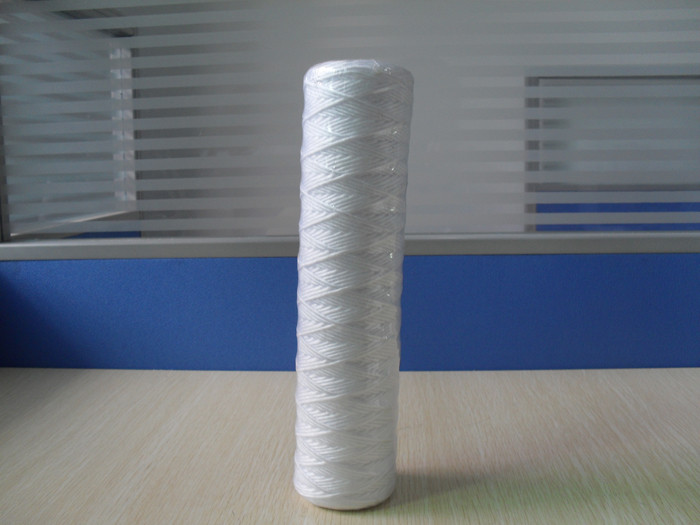

Cotton String Wound Filter Cartridge

Description:

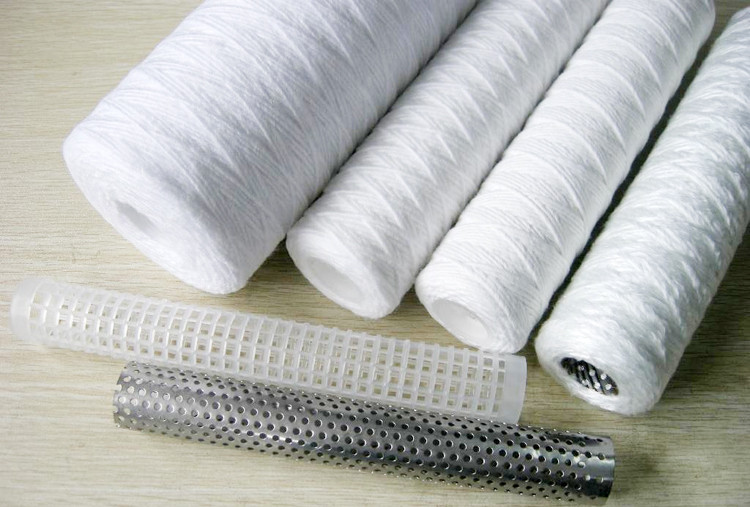

KTMT cotton string wound filter cartridges are manufactured by honeycomb structure, inner layers are tight while outer layers are loose. Cotton string wound filter provide high dirt holding capacity for micron liquid filtration. Cotton string wound filter are made of bleached cotton fiber and stainless steel core, double open end(DOE) or with different kinds of end caps, for example: 222/fin,226/flat etc. It has good chemical resistance, excellent filtering effect, and long service life.

Feature:



1.    Good resistance to acid, alkali corrosion.

2.    Large surface area enhancing liquid filtering effect.

3.    Multiple filtration precision

4.    Withstand high temperature

5.    Wide application and excellent chemical compatibility for different applications.

6.    Honeycomb construction offer high dirt holding capacity, long service life and high flow rate.


Specification:



Filter Media

Bleached Cotton

Micron Rating

1, 5, 10, 20, 30, 50, 75, 100 μm

Core

Polypropylene, SUS304, SUS316

Inside Diameter

1.1"( 28mm),1.2"(30mm)

Outside Diameter

2.36"(60mm),2.4"(61mm), 2.5"(63mm), 2.55"(65mm)

Length

5",9.75"9.8",10",20",30",40",50"

Gasket/O-ring

Silicone, EPDM, Viton, Teflon encapsulated Viton

End Cap

Flat ,222 O-Ring,226 O-Ring, Fin

Operating date:



Different Material

PP

Bleached Cotton

Glass Fiber

Maximum Operating Temperature

60(140)

150(300)

400(750)



Maximum Differential Pressure

2.7 bar at 27 (50 psi at 80)

1.4 bar at 60 (20 psi at 140)

0.7 bar at 82 (10 psi at 180)

Recommended Change Out Differential

Pressure

1 bar (14psi)




KTMT advantage



l  Professional manufacturer

l  Good service and fast delivery

l  Quality control and high reputation

l  Advanced technology




Application:

-- Industrial oil/water separation

-- Petrol chemical process

-- Many crucial fields liquid filtration

-- Condensate water filtration in power generation

--Solvents filtration in BioPharm market

--Paints and coatings, Petrochemical, Refineries

-- Pre-filtration of ultrapure water.
