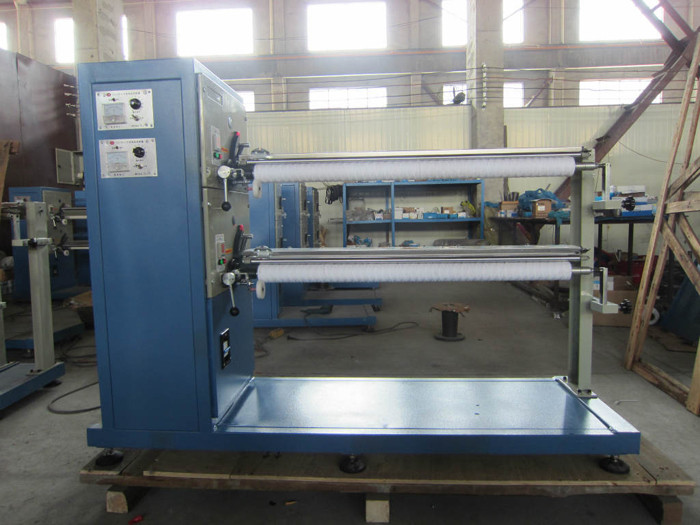

PP yarn string wound filter production line Introduction

Machine can produce 10, 20,30,40inch string wound filter;

Raw material: PP yarn, Cotton, fiberglass etc.

Filter rating:1, 5, 10, 20, 50, 100μm etc.

Parameters

Machine

10,20,30,40inch...

Power

180w 250w 370w 370w

Output(piece/hour)

70-80 50-60 25-35 20-30

Speed(r/min)

2880 2880 14400 14400

PP core length(mm)

248     498 748     998

252    506  760  1014

Filter cartridge length(mm)

250  500  750  1000

254  508  762  1016

Winding line speed

40-280m/min

Max winding diameter

200mm

Motor Speed

2800r/min

Frame Material

Polypropylene, stainless steel etc.

Raw Material

PP yarn, cotton etc.

Filter precision

0.5,1,5,10,20,50,100μm...etc

Voltage

380V/50HZ or 220/50HZ
