Specification & Dimension of Top Loaded Pulse Pleated Filter Cartridge/KTMT Filter

Specification & Dimension of Top Loaded Pulse Pleated Filter Cartridge/KTMT Filter
Update Time:2017-08-16

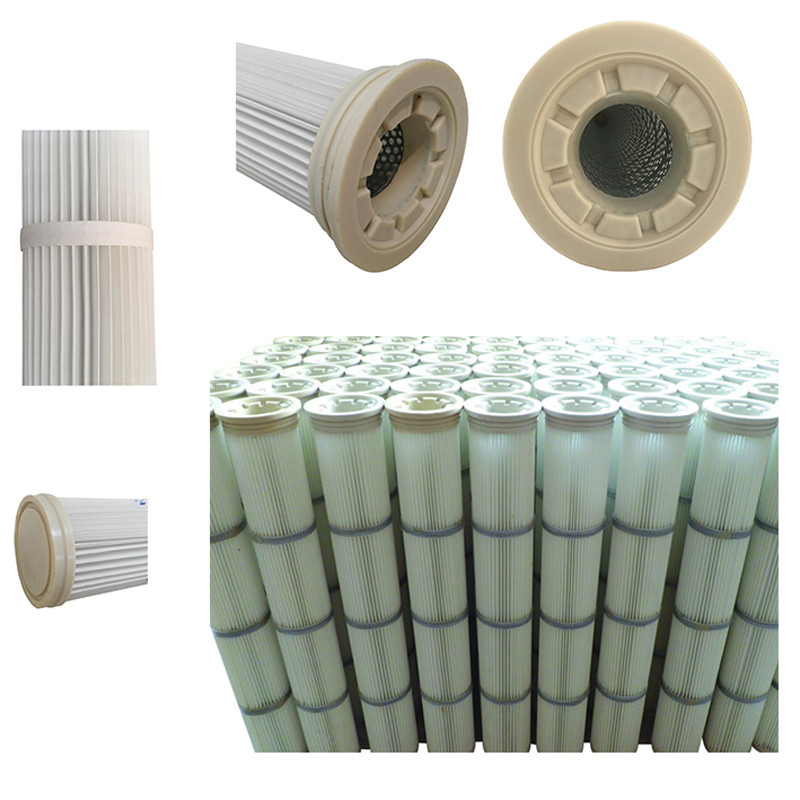

Top Loaded Pulse Pleated Filter Cartridge

Top Loader Pulse pleated filter cartridge provides an alternative to conventional filter bags
providing increased air flow. The top loader cartridges can be installed in existing bag
 house dust
collectors by way of easy clean side installation.

standard structure:

Top cap

Molded Polyurethane (PU)-soft

Sealing ring

Rubber or good-grade silicone

Inner mesh

galvanized steel or stainless steel

Outside straps

Glued or ultrasonic weld strap

Closed bottom cap

Molded Polyurethane (PU)-soft

Filter media

100% filament spinning spun bonded polyester

Operating temperature

107

No metal parts touch with the dusty gas



Optional after-treatment:

PTFE anti-static, waterproof and anti-oil treatment.

Application

It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages,

wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.

Optional after-treatment:
PTFE anti-static, waterproof and anti-oil treatment.
Application
It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages,
wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.

Specification

Model

Cover Material

Tube Sheet H.D (mm)

Top Cover O.D (mm)

Bottom Cover    O.D (mm)

Filtration Surface/1m

Filtration Surface/2m

KTMT 133

Polyurethane

Φ133

φ142

φ120

2.0

4.0

KTMT 153

Polyurethane

Φ153

φ160

φ140

2.1

4.3

KTMT 159

Polyurethane

Φ159

φ169

φ145

2.3

4.6

KTMT 162

Polyurethane

Φ162

φ169

φ150

2.3

4.6
